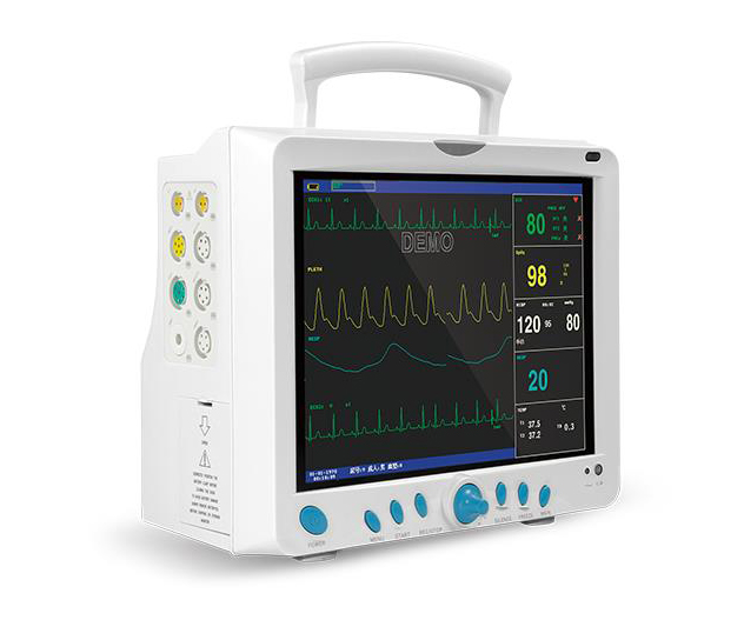

Contec Medical Systems Patient Monitor CMS8000

Use a soft cloth with detergent to wipe the lead cable surface until no obvious dirt remains.

Use a new cloth or paper towel with tap-water to wipe off residual detergent until no obvious dirt remains.

Use a dry soft cloth to wipe off residual water.

Place the cable in a ventilated and shady environment for air drying.

Ensure the device is turned off

Use a soft cloth with proper detergent to wipe the external surface, including the LCD, until there is no obvious dirt

Use a new cloth or paper towel with tap water to wipe off residual detergent until there is no obvious dirt

Place the device in a ventilated and shady environment for air drying

Safety warnings and precautions

Ensure environment and power meet the requirements

Check for no abrasion and good insulation performance for the power cord

Device and Accessories Inspection

Check for no mechanical damage for the device and accessories

Verify the specified accessories are used

Verify alarm functions are normal

Check recorder works normally and recording paper conforms with specified requirements

Disconnect the connection between the device and the patient to stop all monitoring and measurement.

Connect the device to AC to continuously charge the battery for above 10 hours.

Use the battery to supply power for the device till shutdown.

Record the battery-powered time in hours.

Is the battery-powered time lower than the time claimed in the Specification?

Take out the gasbag before cleaning

Select the cleaning method for the cuff

Use a new cloth or paper towel with tap-water to wipe residual detergent

Use a dry soft cloth to wipe the residual water

Place the cuff in a ventilated and shady environment for air drying

Roll up the gasbag lengthwise and place it into the cuff from the big opening side

Thread the leather hose of the airbag through the small hole on the cuff, from inside to outside
