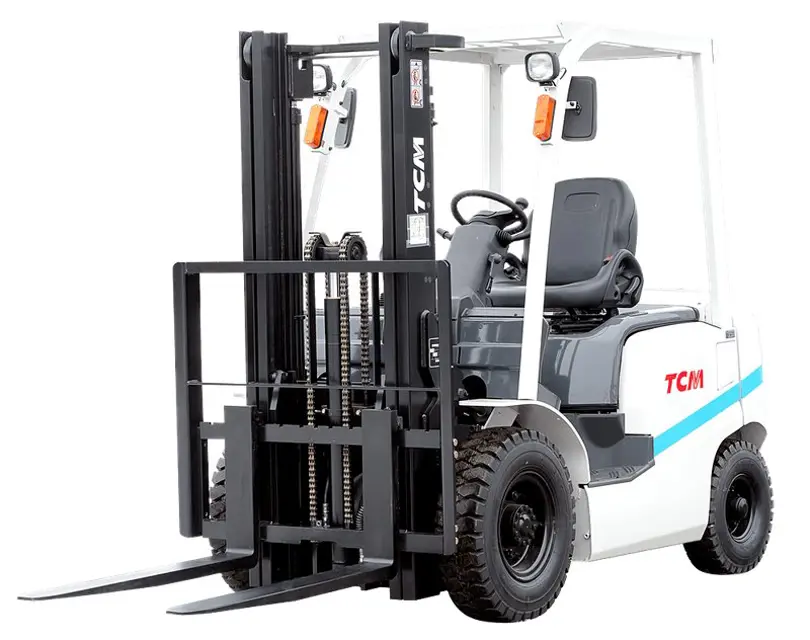

TCM Corporation Forklift Truck FG15C13

Change master cylinder and release cylinder fluid

Check clutch oil level in tank (trucks with optional oil clutch)

Torque Converter Type Transmission Maintenance

Change inline filter for torque converter

Is the hydraulic oil contaminated?

Change hydraulic oil if contaminated

Check for loose linkage of the control valve lever

Check function of the control valve lever

Check for oil leaks in the control valve

Retighten engine cylinder head bolts (C240 engine)

Measure engine cylinder compression pressure

Check proper operation of governor (maximum rpm under no-load condition)

Change fuel filter (gas-powered trucks)

Check injection timing (diesel-powered trucks)

Lubricate clutch retainer bearing

Check hub, rim mounting bolt, and nut

TD27-II, QD32, C240 Sedimenter Maintenance

Turn the drain cock (plug) 4 or 5 turns to loosen it

Pump the priming pump a few times to drain water from inside the sedimenter

Tighten the drain cock (plug) securely

Pump the priming pump a few more times to ensure no fuel leak from the drain cock (plug)

Wipe away any spilt fuel from areas around the sedimenter

Start the engine and ensure the sedimenter warning light is off

D1503, V3300 Sedimenter Maintenance
