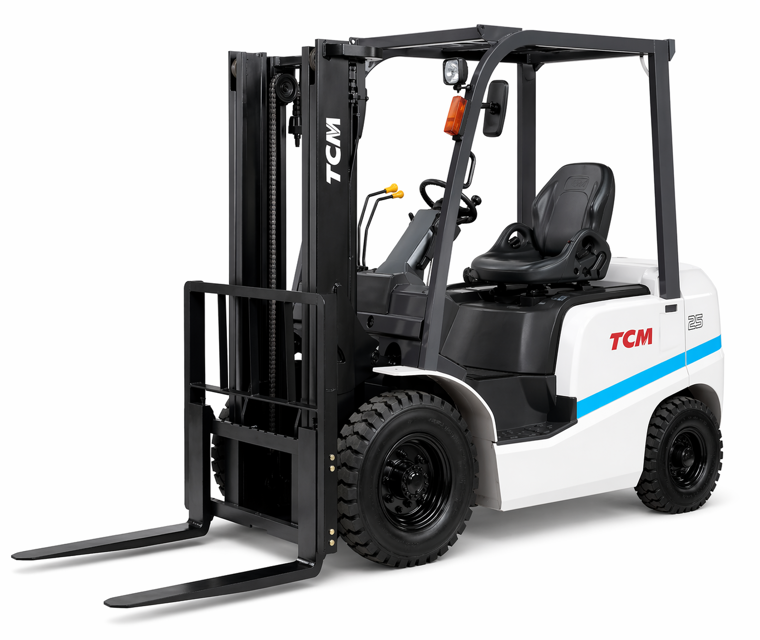

TCM Corporation Forklift Truck FHG18T3

Loosen the lift chain sufficiently

Apply engine oil to the lift chains using an oiler or brush

Move the mast up and down at least 10 times after applying engine oil

Apply grease to the following points

Apply grease with brush to inner and outer channels in areas which come in contact with end rollers

Apply grease on the mast rear slipper

Apply grease on the U-shape guides for masts with free lift mechanism

Visually check engine for proper rotation

Check engine oil for contamination

Check brake pedal height and returning

Check brake pedal for braking or uneven braking

Check parking brake lever for proper operation and allowance

Check parking brake lever for braking effect

Check rod and cable for proper operation

Check for clutch noise and proper disengagement

Check for clutch slipping and proper engagement

Check master cylinder and release cylinder for fluid leaks

Check the function of booster (trucks with power clutch)

Check booster for oil leaks (trucks with power clutch)

Check shift levers for operation and looseness

Check distributor cap for cracks

Check gap between signal rotor and stator

Check proper engagement of pinion gears
