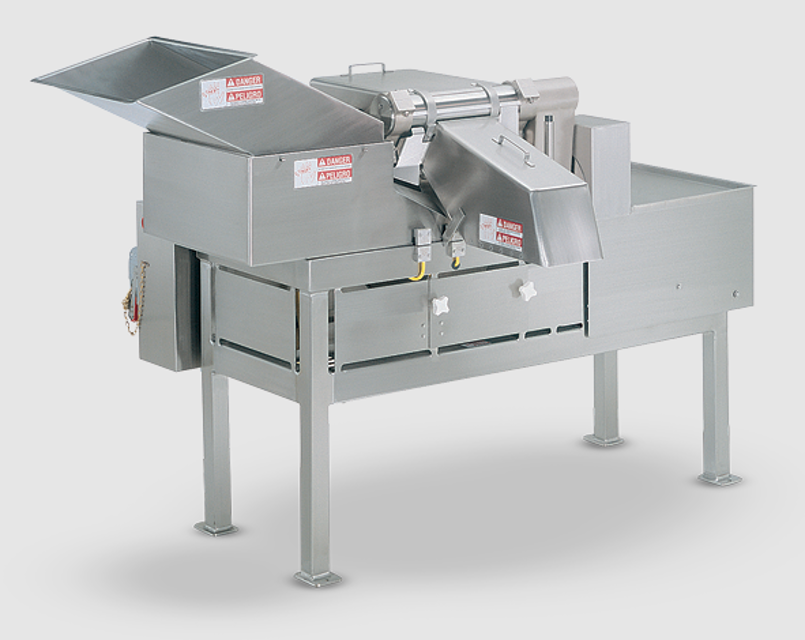

Urschel Laboratories Dicer Machine G-A

WARNING: Disconnect and lockout power source and visually verify that machine has come to a complete stop before removing any cover or guard.

Ensure power source is disconnected and locked out.

Visually verify that the machine has come to a complete stop.

Remove the following covers and guards to service the various areas of the machine

Covers and guards that generally do not require removal

Is the machine ready for operation after servicing?

Ensure all removed covers and guards are reinstalled properly.

Verify that all tools and materials are cleared from the machine area.

Ensure all covers and guards are in place before starting the machine

Maintain a safe distance from the machine while it is running

Clean outside of machine with water

Flush product from cutting parts by directing a stream of water or cleaning solution into feed opening while machine is running

Stop the machine and disconnect and lock out power source

Thoroughly wash all sheet metal covers

Remove and disassemble all cutting parts

Loosen the two pinch bolts that hold the support bar on the main casting

Insert a .0015" (.038 mm) feeler gauge between the retaining cap and the end of the hinge tube

Push the support bar into the main casting and tighten the pinch bolts

Circular Knife Spindle Adjustment

Check gear alignment on circular knife spindle with gear on main support casting

Ensure circular knives are centered in the slots of the slicing knife holder

Wash all parts thoroughly in a suitable de-greasing solution

Clean holes in casting to remove remaining grease or foreign matter

Inspect bearings for rust, scoring, or flat spots on rollers

Is there any doubt about the serviceability of the bearings?

Install new bearings if necessary

Inspect shafts for rust, pits, and deep scoring in areas of oil seal contact

Ensure all operators have a thorough understanding of the safe operation of this machine (Figure 19)

Verify that safety switches are in working order with guards securely in place

Confirm that the machine has ample space on all sides for safe and easy movement in a clean, dry work area

Check that the machine is properly wired

Ensure the starter enclosure door screws are securely fastened
