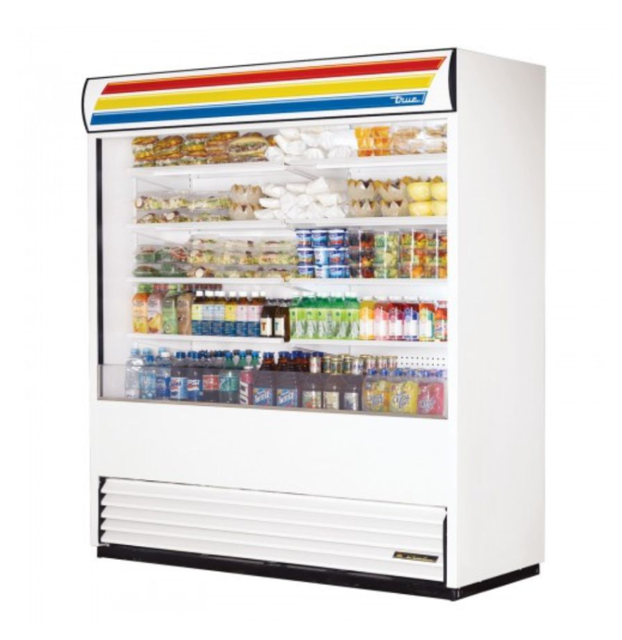

True Food Service Equipment Refrigeration Equipment TAC-72RC

WARNING: Disconnect power to cabinet before replacing light bulbs.

Install the new light bulb ensuring the prongs seat appropriately into the lampholder

Verify the new bulb is securely installed

Ensure no steel wool, abrasive or chlorine-based products are used.

Understanding Stainless Steel Opponents

Identify potential threats to stainless steel surfaces

Preventing Rust on Stainless Steel

Use non-abrasive cleaning tools like soft cloths and plastic scouring pads.

Clean along the polish lines or grain of the stainless steel.

Use alkaline, alkaline chlorinated, or non-chloride containing cleaners.

Treat water to reduce deposits and soften hard water.

Ensure basic safety precautions are followed when using electrical appliances.

Remove front lower grill assembly by removing two screws in lower corners.

Loosen screws holding the top pivot pins.

Swing grill up and remove frame hooks from pivot pins at top of louver.

Disconnect the electrical power to the unit

Clean the finned condenser coil

Vacuum or brush the dirt, lint, or debris from the finned condenser coil

Blow out the condenser with compressed air if there is significant dirt build-up

Reconnect the electrical power to the unit

Contact TRUE Manufacturing Service Department if you have any questions
