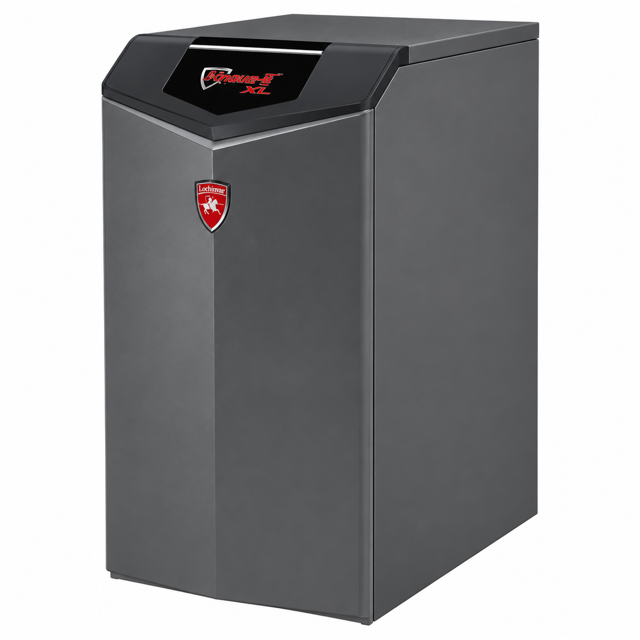

Lochinvar Boiler KBX0650-ON

Warning: Follow the Service and Maintenance Procedures

Acknowledge understanding of the warnings and precautions

Check for air leaks in the following areas

Is there any indication of air leaks in the system?

Enter the fresh water volume entering the system (as a percentage of system volume)

Turn off power to the boiler before starting any service operation.

Ensure all safety warnings are understood and followed.

Condensate Trap Inspection and Cleaning

Inspect the condensate drain line, PVC fittings, and condensate trap.

Remove the bottom cap of the condensate trap and clean out any sediment.

Check if the ball is present in the condensate trap to act as a seal against flue gases.

Ensure the condensate trap is installed properly.

Follow the service and maintenance procedures in the manual and component literature.

Ensure the boiler is inspected annually by a qualified service technician.

Turn off power to the boiler before any service operation.

Freeze Protection Fluid Testing

Follow the freeze protection fluid manufacturer's instructions.

Test the glycol concentration in the system.

Is the glycol concentration within the desired set points?

Adjust the glycol concentration as necessary and describe the adjustments made.

Follow the service and maintenance procedures in the manual and component literature.

Ensure the boiler is inspected annually by a qualified service technician.

Turn off power to the boiler before any service operation.

Ensure all service and maintenance procedures are followed as per the manual and component literature.

Verify that the boiler is inspected annually by a qualified service technician.

Turn off power to the boiler before performing any service operation.

Record the pressure reading from the pressure/temperature gauge.

Record the temperature reading from the pressure/temperature gauge.

Is the pressure within the normal operating range?

Is the temperature within the normal operating range?
