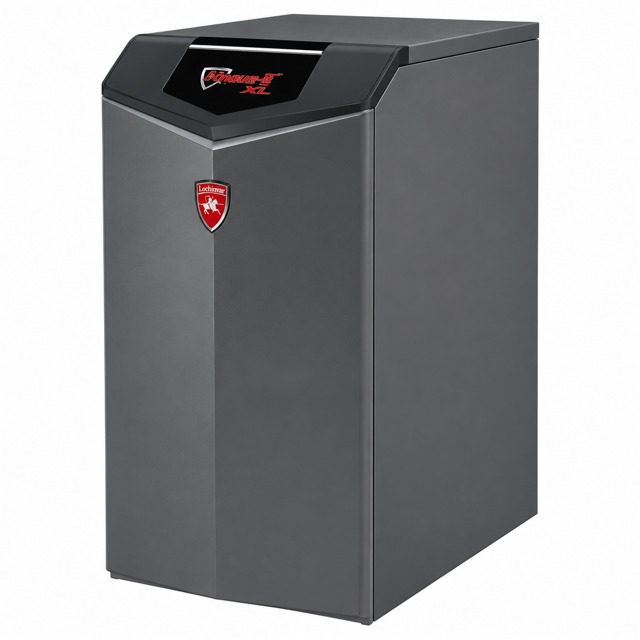

Lochinvar Boiler KBX0650-OL
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Lochinvar Boiler KBX0650-OL
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Lochinvar Boiler KBX0650-OL
Create an account to install this asset package.
Maintenance Plans for Lochinvar Boiler Model KBX0650-OL
Integrate maintenance plans directly into your work orders in MaintainX.
Freeze Protection Fluid Replacement
Safety Precautions
Follow the Service and maintenance procedures given throughout the manual and in component literature shipped with the boiler.
Ensure the boiler is inspected annually by a qualified service technician.
Turn off power to the boiler before any service operation.
Freeze Protection Fluid Replacement
Follow the freeze protection fluid manufacturer's instructions.
Replace freeze protection fluid periodically due to degradation of inhibitors over time.
Boiler Interior Check
Safety Precautions
Ensure power to the boiler is turned off
Verify that the boiler is inspected by a qualified service technician
Inspection and Cleaning
Remove the front access cover
Inspect the interior of the boiler for any visible damage or issues
Vacuum any sediment from inside the boiler and components
Remove any obstructions from the boiler interior
Post-Inspection
6 Monthly Relief Valve Testing
Safety Precautions
Follow the service and maintenance procedures in the manual and component literature.
Ensure the boiler is inspected annually by a qualified service technician.
Turn off power to the boiler before any service operation.
Relief Valve Operation
Operate the relief valve.
Water Piping Check
Safety Precautions
Follow the service and maintenance procedures in the manual and component literature.
Ensure the boiler is inspected annually by a qualified service technician.
Turn off power to the boiler before any service operation to avoid electrical shock.
Piping Inspection
Check system piping for leaks.
If leaks are found, was the boiler shut down and repaired immediately?
Air Venting
Vent any remaining air from the system using manual vents.
Fill Water Check
Safety Precautions
Turn off power to the boiler before any service operation
Ensure the boiler is inspected annually by a qualified service technician
Water Quality Testing
Measure water hardness in grains per gallon
Is water hardness between 5 and 12 grains per gallon?
Measure pH level of the water
Is pH level between 6.5 and 8.5?
Measure Total Dissolved Solids (TDS) in ppm
Parts for Lochinvar Boiler KBX0650-OL
Access the parts list for your equipment in MaintainX.
Roof Termination
ICRT4679
Wall Termination
ICWT462
Heat Exchanger Cleaning Kit
100157628
Rear Refractory Cover, 10.75" Diameter
100333410
Rear Refractory Cover, 7.25" Diameter
100208804
Roof Termination
ICRT4679
Wall Termination
ICWT462
Heat Exchanger Cleaning Kit
100157628
Rear Refractory Cover, 10.75" Diameter
100333410
Rear Refractory Cover, 7.25" Diameter
100208804
Roof Termination
ICRT4679
Wall Termination
ICWT462
Heat Exchanger Cleaning Kit
100157628
Rear Refractory Cover, 10.75" Diameter
100333410
Rear Refractory Cover, 7.25" Diameter
100208804
