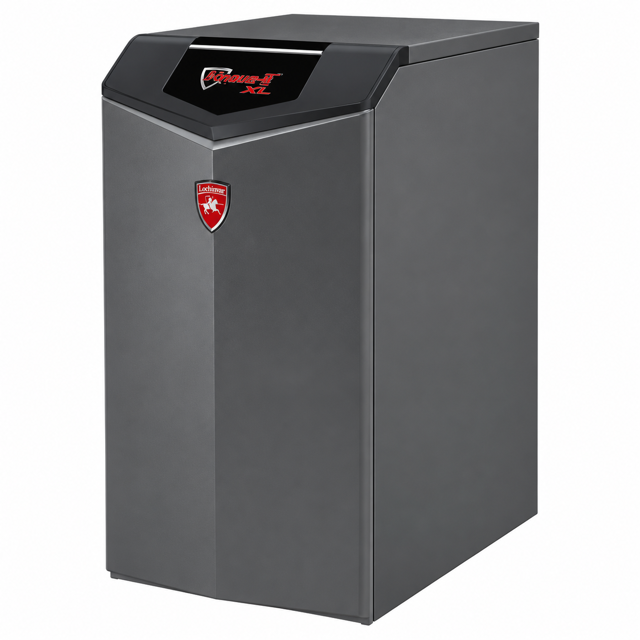

Lochinvar Boiler KBX0500N

Is the inspection being conducted by a licensed plumbing contractor or authorized inspection agency?

Inspection of Safety Relief Valve

Inspect the valve for signs of corrosion

Ensure the valve and discharge line have not been altered or tampered with

Remove and inspect the valve and its components

Reinstall the valve after inspection

Ensure all service and maintenance procedures are followed as per the manual.

Verify that the boiler is inspected annually by a qualified service technician.

Turn off power to the boiler before any service operation.

Record the flame signal at high fire (should be at least 10 microamps).

Is the flame signal at least 10 microamps?

Troubleshooting Low Flame Signal

Clean the flame sense electrode.

Turn off power to the boiler before any service operation.

Ensure the relief valve discharge is piped to a safe area.

Inspect the relief valve and lift the lever to verify flow.

Is the discharge line connected to direct flow to a proper disposal area?

Did water flow when the valve lever was operated?

If no water flows, is the valve inoperative?

Ensure power to the boiler is turned off to prevent electrical shock.

Verify that the inspection is being conducted by a qualified service technician.

Remove the front access cover of the boiler.

Inspect the interior of the boiler for any visible damage or issues.

Vacuum any sediment from inside the boiler and components.

Remove any obstructions found inside the boiler.

Warning: Follow the Service and Maintenance Procedures

Warning: Annual Inspection by Qualified Technician

Warning: Electrical Shock Hazard

Test low water cutoff (if used)

Reset button (low water cutoff)
