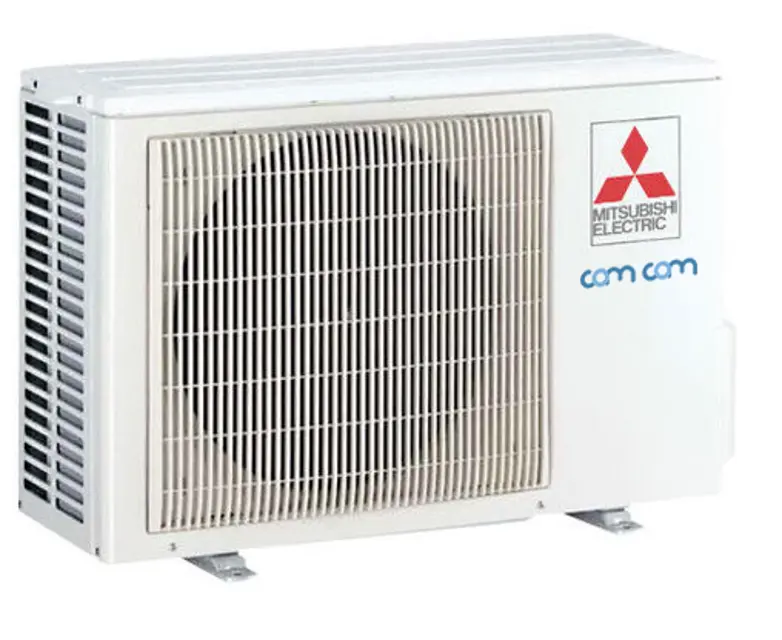

Mitsubishi Outdoor Unit MUZ-SF50VEH
Create an account to install this asset package.
Maintenance Plans for Mitsubishi Outdoor Unit Model MUZ-SF50VEH
Integrate maintenance plans directly into your work orders in MaintainX.
Pre-Heat Control Setting
Warning: This procedure requires trained personnel!
Is the discharge temperature thermistor 20°C or below?
Is the compressor energized when the pre-heat control turns ON?
To activate the pre-heat control, follow the next steps
Cut JK wire of the inverter P.C. board
Note: When the inverter P.C. board is replaced, follow the next steps
Check the Jumper wires
Cut/solder them if necessary
Sign off on the Pre-Heat Control Setting
Defrost Setting Changing
Warning: This procedure requires trained personnel!
JS wire of the outdoor Inverter P.C. board cut/soldered?
Select the model of the unit
Enter the defrost finish temperature
Sign off on the defrost setting change
Parts for Mitsubishi Outdoor Unit MUZ-SF50VEH
Access the parts list for your equipment in MaintainX.
Top Panel
E12 F28 297
Outdoor Heat Exchanger
E12 H21 630
Outdoor Fan Motor, Symbol - MF, Model - RC0J60
E12 G16 301
Propeller Fan
E12 F28 501
Handle
E12 817 009
Top Panel
E12 F28 297
Outdoor Heat Exchanger
E12 H21 630
Outdoor Fan Motor, Symbol - MF, Model - RC0J60
E12 G16 301
Propeller Fan
E12 F28 501
Handle
E12 817 009
