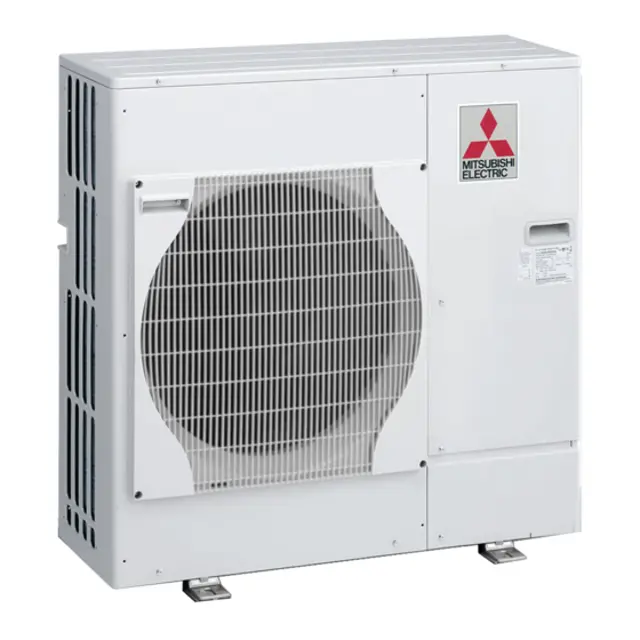

Mitsubishi Split-Type, Heat Pump Air Conditioner PUHZ-RP125YKA
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Mitsubishi Split-Type, Heat Pump Air Conditioner PUHZ-RP125YKA
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Mitsubishi Split-Type, Heat Pump Air Conditioner PUHZ-RP125YKA
Create an account to install this asset package.
Maintenance Plans for Mitsubishi Split-Type, Heat Pump Air Conditioner Model PUHZ-RP125YKA
Integrate maintenance plans directly into your work orders in MaintainX.
Outdoor Unit 4-way valve Replacement
Remove the service panel
Upload a photo of the removed service panel
Remove the top panel
Upload a photo of the removed top panel
Remove 3 valve bed fixing screws and 4 ball valve and stop valve fixing screws then remove the valve bed
Remove 4 right side panel fixing screws in the rear of the unit then remove the right side panel
Remove the 4-way valve coil
Upload a photo of the removed 4-way valve coil
Recover refrigerant
Outdoor Unit Thermistor <Outdoor 2-phase pipe> (TH6) Replacement
Remove the service panel
Remove the top panel
Disconnect the connector TH7/6 (red), on the controller circuit board in the electrical parts box
Loosen the 2 wire clamps on top of the electrical parts box
Pull out the thermistor <Outdoor 2-phase pipe> (TH6) from the sensor holder
Note: In case of replacing thermistor <Outdoor 2-phase pipe> (TH6), replace it together with thermistor <Outdoor> (TH7), since they are combined together.
Remove thermistor <Outdoor> (TH7)
Sign off on the thermistor replacement
Outdoor Unit Fan Motor (MF1,MF2) Replacement
Remove the service panel
Upload a photo of the service panel removal
Remove the top panel
Upload a photo of the top panel removal
Remove 4 fan grille fixing screws (5 × 10) to detach the fan grille
Upload a photo of the fan grille removal
Remove a nut (for right handed screw of M6) to detach the propeller
Upload a photo of the propeller removal
Disconnect the connectors, CNF1, CNF2 on controller circuit board in electrical parts box
Outdoor Unit Electrical Parts Box Replacement
Upload Photo 1 of the service panel and top panel
Service panel removed
Top panel removed
Indoor/outdoor connecting wire disconnected from terminal block
Disconnect the connectors on the controller circuit board
Disconnect the pipe-side connections
Lead wires disconnected from the reactors
Terminal cover removed and compressor lead wire disconnected
2 electrical parts box fixing screws removed
Outdoor Unit the Reactor (ACL1, ACL2, ACL3) Replacement
Warning: The reactor is very heavy (4 kg)! Be careful when handling it.
Service panel removed
Upload a photo of the removed service panel
4 fixing screws of the reactor box removed
Upload a photo of the removed screws
Lead wires disconnected from the reactor
Upload a photo of the disconnected lead wires
4 fixing screws of 3 reactors removed
Upload a photo of the removed screws from the reactors
Parts for Mitsubishi Split-Type, Heat Pump Air Conditioner PUHZ-RP125YKA
Access the parts list for your equipment in MaintainX.
Inverter Starter Type, Hermetic Compressor - 2,4 KW
ANB33FDVMT
Inverter Starter Type, Hermetic Compressor - 2,4 KW
ANB33FDVMT
Inverter Starter Type, Hermetic Compressor - 2,4 KW
ANB33FDVMT
