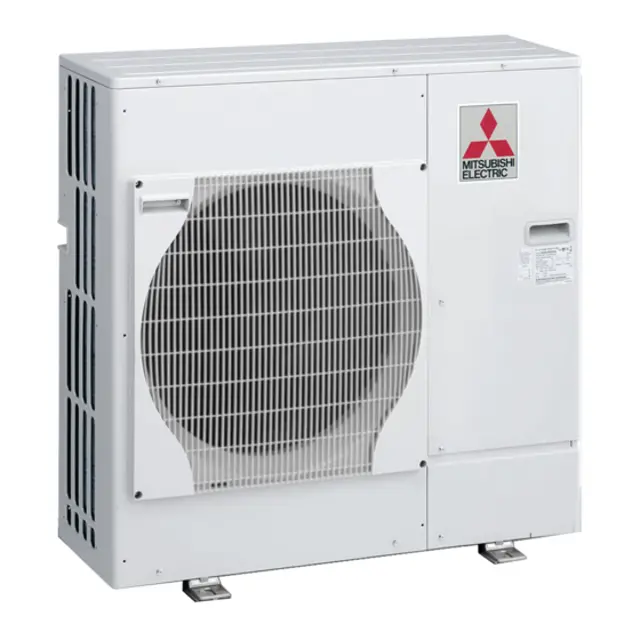

Mitsubishi Split-Type, Heat Pump Air Conditioner PUHZ-RP140YKA
Create an account to install this asset package.
Maintenance Plans for Mitsubishi Split-Type, Heat Pump Air Conditioner Model PUHZ-RP140YKA
Integrate maintenance plans directly into your work orders in MaintainX.
Oudoor Unit Thermistor <Outdoor pipe> (TH3) (TH33) and Thermistor <Discharge> (TH4), Thermistor <Shell> (TH32) Replacement
Remove the service panel
Disconnect the connectors, TH3 (white) and TH4 (white),TH33 (yellow), TH32 (black) on the controller circuit board in the electrical parts box
Loosen the clamp for the lead wire under the electrical parts box
Pull out the thermistor <Outdoor pipe> (TH3), (TH33) and thermistor <Discharge> (TH4) from the sensor holder
Removing the thermistor<Shell> (TH32)
Remove the sound proof cover (upper) for compressor
Pull out the thermistor <Shell> (TH32) from the holder of the compressor shell
Sign off on the thermistor replacement
Outdoor Unit Thermistor <Outdoor> (TH7) Replacement
Remove the service panel
Remove the top panel
Disconnect the connector TH7/6 (red) on the controller circuit board in the electrical parts box
Loosen the 2 wire clamps on top of the electrical parts box
Pull out the thermistor <Outdoor> (TH7) from the sensor holder
Note: In case of replacing thermistor <Outdoor> (TH7), replace it together with thermistor <Outdoor 2- phase pipe> (TH6), since they are combined together
Remove thermistor <Outdoor 2-phase pipe>
Sign off on the thermistor replacement
Outdoor Unit Fan Motor (MF1,MF2) Replacement
Remove the service panel
Upload a photo of the removed service panel
Remove the top panel
Upload a photo of the removed top panel
Remove 4 fan grille fixing screws (5 × 10) to detach the fan grille
Upload a photo of the detached fan grille
Remove a nut (for right handed screw of M6) to detach the propeller
Upload a photo of the detached propeller
Disconnect the connectors, CNF1, CNF2 on controller circuit board in electrical parts box
Outdoor Unit High Pressure switch (63H) Replacement
Upload a photo of the service panel before removal
Service panel removed
Upload a photo of the top panel before removal
Top panel removed
Right side panel fixing screws removed
Right side panel removed
Lead wire of high pressure switch pulled out
Refrigerant recovered without spreading it in the air
Welded part of high pressure switch removed
Outdoor Unit Compressor (MC) Replacement
Remove the service panel
Upload a photo of the removed service panel
Remove the top panel
Upload a photo of the removed top panel
Remove 2 front cover panel fixing screws (5 × 10) and remove the front cover panel
Upload a photo of the removed front cover panel
Remove 4 back cover panel fixing screws (5 × 10) and remove the back cover panel
Remove the electrical parts box
Upload a photo of the removed electrical parts box
Parts for Mitsubishi Split-Type, Heat Pump Air Conditioner PUHZ-RP140YKA
Access the parts list for your equipment in MaintainX.
Inverter Starter Type, Hermetic Compressor - 2,9 KW
ANB42FDXMT
Inverter Starter Type, Hermetic Compressor - 2,9 KW
ANB42FDXMT
Inverter Starter Type, Hermetic Compressor - 2,9 KW
ANB42FDXMT
