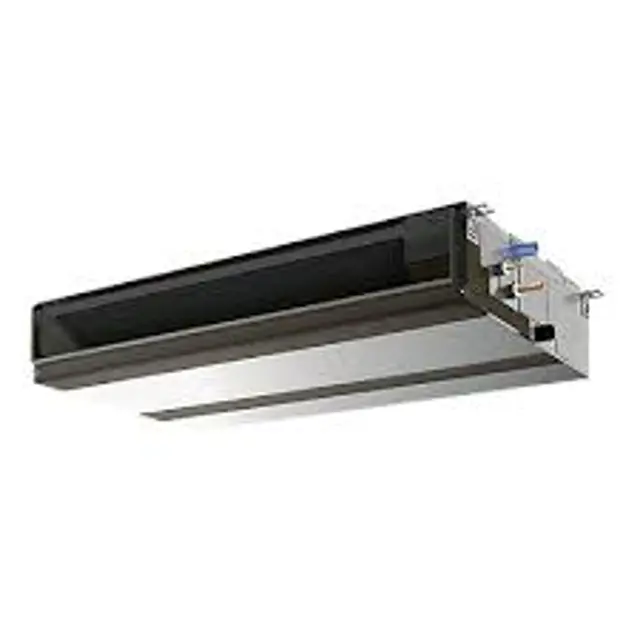

Mitsubishi Air-Conditioner PEFY-P24NMAU-E

Exercise caution when removing heavy parts.

1. Remove the control box cover according to the procedure in section [1].

(1) Pull out the thermistor holder (B) and thermistor (C) on the control box.;

Exercise caution when removing heavy parts.

1. Removing the filter and the bottom plate

(1) Push down the tab on the filter, and pull out the filter in the direction of the arrow 1.

(2) Remove the fixing screws on the bottom plate (J) to remove it.

2. Removing the fan casing (bottom half)

(1) Squeeze the tabs on the fan casing to remove it in the direction of arrow 2.

(1) Remove the motor cable threw the rubber bush.

4. Removing the fan motor and the Sirocco fan

Exercise caution when removing heavy parts.

1. Removing the filter and the bottom plate.

(1) Push down the tab on the filter, and pull out the filter in the direction of the arrow 1.

(2) Remove the fixing screws on the bottom plate (D), (E) to remove it.

(1) Pull out the drain pan in the direction of the arrow 2.

Drain the water out of the drain pan before removing it.;

Exercise caution when removing heavy parts.

1. Removing the control box cover.

(1) Remove the three fixing screws on the cover (A) to remove it.;

Exercise caution when removing heavy parts.

1. Remove the drain pan according to the procedure in section [1].

2. Removing the Heat exchanger cover.

(1) Remove the four fixing screws on the heat exchanger cover (F) to remove it.

(1) Remove the thermistor (G) from the thermistor holder (H) on the copper tube.
