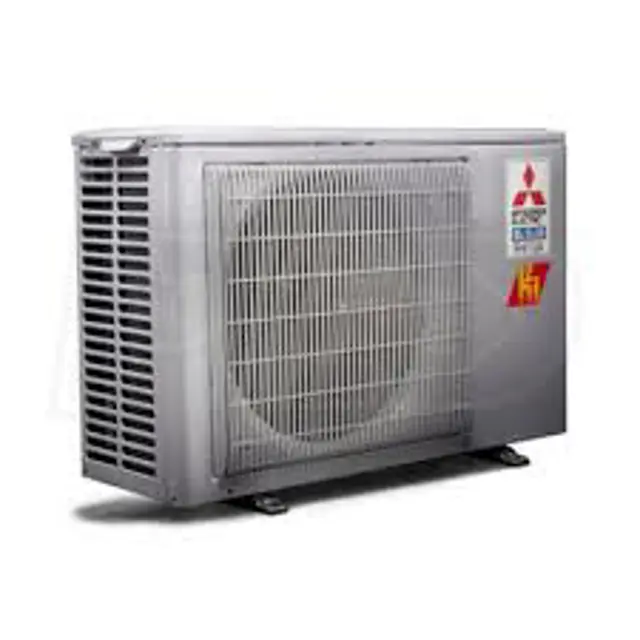

Mitsubishi Split-Type Air Conditioner MUZ-FH06NA
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Mitsubishi Split-Type Air Conditioner MUZ-FH06NA
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Mitsubishi Split-Type Air Conditioner MUZ-FH06NA
Create an account to install this asset package.
Maintenance Plans for Mitsubishi Split-Type Air Conditioner Model MUZ-FH06NA
Integrate maintenance plans directly into your work orders in MaintainX.
Outdoor Unit Fan Motor Replacement
Remove the cabinet and panels
Disconnect the connectors: CN931, CN932 (Fan motor)
Remove the propeller fan nut
Remove the propeller fan
Remove the screws fixing the fan motor
Remove the fan motor
Sign off on the fan motor replacement
Outdoor Unit Discharge Temperature, Defrost,Outdoor Heat Exchanger Temperature and Ambient Temperature Thermistor Replacement
Remove the cabinet and panels
Disconnect the lead wire to the reactor
Disconnect the following connectors
Pull out the discharge temperature thermistor from its holder
Pull out the defrost thermistor from its holder
Pull out the outdoor heat exchanger temperature thermistor from its holder
Pull out the ambient temperature thermistor from its holder
Upload a photo of the thermistors after removal
Sign off on the thermistor replacement
Outdoor Unit Compressor and 4-Way Valve Replacement
Remove the cabinet and panels
Remove the inverter assembly
Remove the screws fixing the reactor
Remove the reactor
Remove the soundproof felt
Recover gas from the refrigerant circuit until the pressure gauge shows 0 PSIG
Detach the brazed part of the suction and the discharge pipe connected with compressor
Remove the nuts fixing the compressor
Remove the compressor
Outdoor Unit Inverter Assembly, Inverter P.C. Board Replacement
Remove the cabinet and panels
Disconnect the lead wire to the reactor
Disconnect the following connectors
Remove the compressor connector (CN61)
Remove the screws fixing the heat sink support and the separator
Remove the fixing screws of the terminal block support and the back panel
Remove the inverter assembly
Remove the screw of the ground wire and screw of the terminal block support
Remove the heat sink support from the P.C. board support
Outdoor Unit R.V. Coil Replacement
Remove the cabinet and panels
Disconnect the following connectors: <Inverter P.C. board> CN721 (R.V. coil)
Remove the R.V. coil
Parts for Mitsubishi Split-Type Air Conditioner MUZ-FH06NA
Access the parts list for your equipment in MaintainX.
Compressor
SNB092FQAMT
