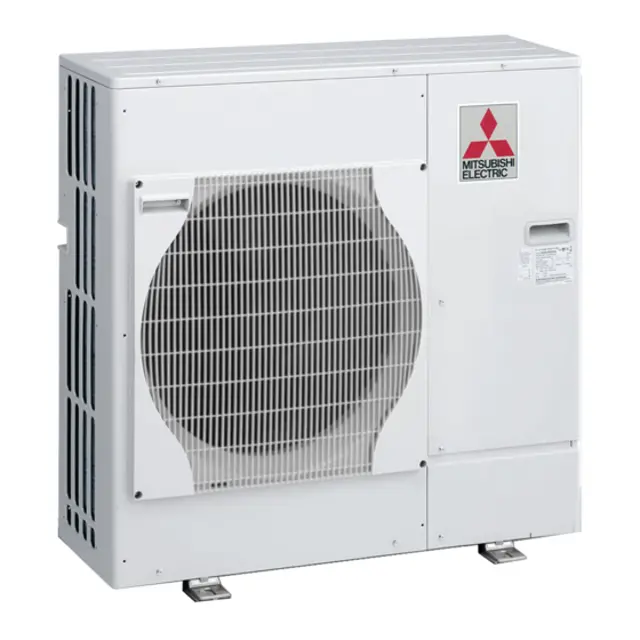

Mitsubishi Split-Type, Heat Pump Air Conditioner PUHZ-RP100YKA
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Mitsubishi Split-Type, Heat Pump Air Conditioner PUHZ-RP100YKA
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Mitsubishi Split-Type, Heat Pump Air Conditioner PUHZ-RP100YKA
Create an account to install this asset package.
Maintenance Plans for Mitsubishi Split-Type, Heat Pump Air Conditioner Model PUHZ-RP100YKA
Integrate maintenance plans directly into your work orders in MaintainX.
Outdoor Unit Thermistor <Outdoor 2-phase pipe> (TH6) Replacement
Remove the service panel
Remove the top panel
Disconnect the connector TH7/6 (red), on the controller circuit board in the electrical parts box
Loosen the 2 wire clamps on top of the electrical parts box
Pull out the thermistor <Outdoor 2-phase pipe> (TH6) from the sensor holder
Note: In case of replacing thermistor <Outdoor 2-phase pipe> (TH6), replace it together with thermistor <Outdoor> (TH7), since they are combined together.
Remove thermistor <Outdoor> (TH7)
Sign off on the thermistor replacement
Outdoor Unit Refrigirant Charging
Cautions for service
Refrigerant recovered from the unit completely
Refrigerant not released in the air
Cycle charged with specified amount of refrigerant
Filter drier installed
Additional refrigerant charge
Cylinder for R410A is a syphon type
Charging performed with the cylinder of syphon stood vertically
Service tools
Outdoor Unit Power Receiver Replacement
Remove the service panel
Upload a photo of the removed service panel
Remove the top panel
Upload a photo of the removed top panel
Remove 2 front cover panel fixing screws (5 × 10) and remove the front cover panel
Upload a photo of the removed front cover panel
Remove 4 back cover panel fixing screws (5 × 10) and remove the back cover panel
Remove the electrical parts box
Upload a photo of the removed electrical parts box
Outdoor Unit LEV Replacement
Upload Photo 1
Service panel removed
Top panel removed
Number of valve bed fixing screws removed
Number of ball valve and stop valve fixing screws removed
Valve bed removed
Number of right side panel fixing screws removed
Right side panel removed
LEV coil removed
Oudoor Unit Thermistor <Outdoor pipe> (TH3) (TH33) and Thermistor <Discharge> (TH4), Thermistor <Shell> (TH32) Replacement
Remove the service panel
Disconnect the connectors, TH3 (white) and TH4 (white),TH33 (yellow), TH32 (black) on the controller circuit board in the electrical parts box
Loosen the clamp for the lead wire under the electrical parts box
Pull out the thermistor <Outdoor pipe> (TH3), (TH33) and thermistor <Discharge> (TH4) from the sensor holder
Removing the thermistor<Shell> (TH32)
Remove the sound proof cover (upper) for compressor
Pull out the thermistor <Shell> (TH32) from the holder of the compressor shell
Sign off on the thermistor replacement
Parts for Mitsubishi Split-Type, Heat Pump Air Conditioner PUHZ-RP100YKA
Access the parts list for your equipment in MaintainX.
Inverter Starter Type, Hermetic Compressor - 1,9 KW
ANB33FDVMT
Inverter Starter Type, Hermetic Compressor - 1,9 KW
ANB33FDVMT
Inverter Starter Type, Hermetic Compressor - 1,9 KW
ANB33FDVMT
