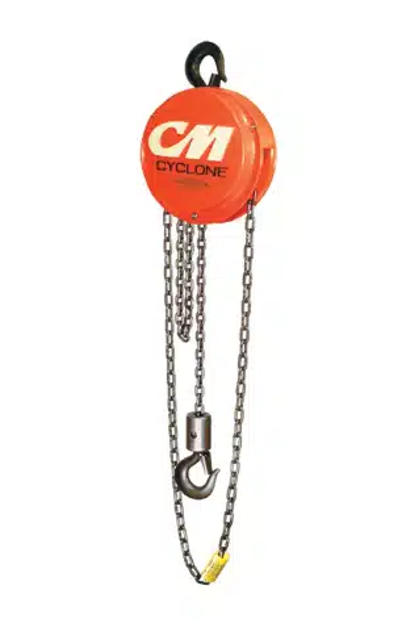

CM Hoist Cyclone

Warning: This inspection requires trained personnel with PPE!

Choose the type of service done

Note: The type of service to which the hoist is subjected can be classified as “Normal”, “Heavy” and “Severe”. Severe Service: is normal or heavy service with abnormal operating conditions.

Frequent Inspections: These inspections are visual examinations by the operator or other designated personnel. Records of such inspections are not required. The frequent inspections are to be performed monthly for normal service, weekly to monthly for heavy service, and daily to weekly for severe service and they should include those items listed in Table 1.

Brake for evidence of slippage.

Hooks for damage, cracks or excessive throat opening, latch engagement and latch operation.

Inspect load chain for adequate lubrication, signs of wear, damaged links or foreign matter.

Inspect reeving of the load chain to make sure it is proper.

WARNING: Any deficiencies are to be corrected before returning the hoist to service. Operating a hoist with worn or damaged parts or a malfunctioning hoist may result in serious personal injury to the operator, nearby personnel and/or property damage. Also, the external conditions may show the need for disassembly to permit a more detailed inspection which, in turn, may require the use of nondestructive type testing.

Warning: This inspection requires trained personnel with PPE!

Choose the type of service done

Brake for evidence of slippage.

Hooks for damage, cracks or excessive throat opening, latch engagement and latch operation.

Inspect load chain for adequate lubrication, signs of wear, damaged links or foreign matter.

Inspect reeving of the load chain to make sure it is proper.

Comments: (Items needing repair or adjustment)

Sign off on the hoist inspection

Warning: This inspection requires trained personnel with PPE!

If the unit is subjected to extra heavy usage or dusty, gritty, moist, or other adverse atmospheric conditions, shorter time intervals must be assigned.

External evidence of loose bolts or nuts.

External evidence of worn, corroded, cracked or distorted hook blocks, suspension bolts, gears, pins, bearings, hand chain wheel, frames, hoist hanger, load chain guide, hook block pin on 1/4 thru 2 ton units, dead end pin on 3, 4, 8 and 10 ton units, and dead end screw on 5 and 6 ton units.

External evidence of damage to hooks, hook nuts or collars and hook nut or collar pins.

External evidence of damage or excessive wear of the pockets of the liftwheel, handwheel, hook block sheaves and hanger sheaves.

External evidence of worn, glazed or oil contaminated friction discs, scoring of handwheel hub, ratchet, and friction hub.

External evidence of worn pawl and ratchet teeth; corroded, stretched or broken pawl spring.

Warning: This procedure requires trained personnel with PPE!

Cleaned the load chain with a non-acid or non-caustic type solvent?

Inspected the chain link-by-link for nicks, gouges, twisted links and excessive wear or stretching?

Gaged the worn chain throughout its entire length?

Warning: Using other than a CM supplied load chain may cause the chain to jam and this, in turn may break the chain and allow the load to drop.

Used only Hoistaloy® load chain in the Cyclone Hand and Low Headroom Trolley Hoists?

Checked gage lengths as indicated in Figure 9?

Warning: Worn load chain may break suddenly without visual deformation.

Never used load chain for any other purposes such as slings or tow chains?

Warning: This procedure requires trained personnel only

Cyclone Hoist inspected and performance tested prior to shipment?

Cyclone Hoist has a performance problem due to a material or workmanship defect?

Cyclone Hoist installed, maintained and operated as outlined in the manual?

Materials or design changed to improve the product?

Abuse, repair by an unauthorized person, or use of non-CM replacement parts?

Sign off on the policy replacement
