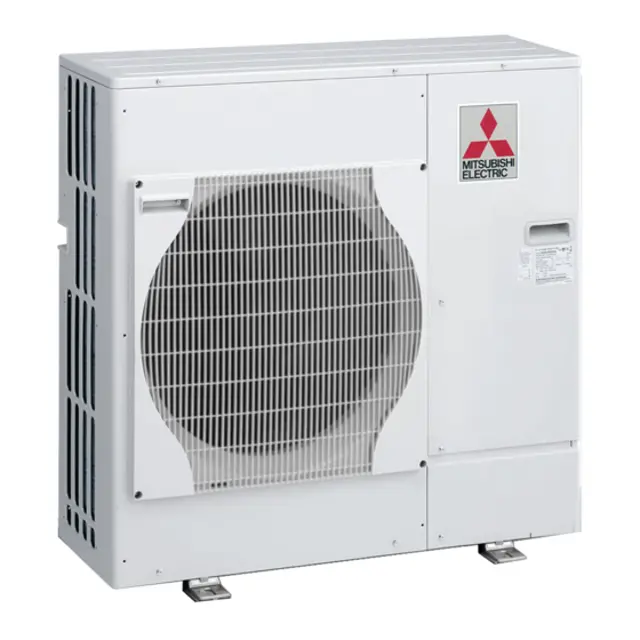

Mitsubishi Split-Type, Heat Pump Air Conditioner PUHZ-RP35VHA4
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Mitsubishi Split-Type, Heat Pump Air Conditioner PUHZ-RP35VHA4
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Mitsubishi Split-Type, Heat Pump Air Conditioner PUHZ-RP35VHA4
Create an account to install this asset package.
Maintenance Plans for Mitsubishi Split-Type, Heat Pump Air Conditioner Model PUHZ-RP35VHA4
Integrate maintenance plans directly into your work orders in MaintainX.
Outdoor Unit 4-Way Valve (21S4) and LEV Coil (LEV (A), LEV (B)) Replacement
(1) Remove the service panel. (See Photo 2)
(2) Remove the top panel. (See Photo 1)
(3) Remove the front panel. (See Photo 1)
(4) Remove the back panel. (See Photo 1)
(5) Remove the electrical parts box. (See Photo 5)
[Removing the 4-way valve (21S4)]
(6) Remove 1 4-way valve fixing screw (M4 × 6).
(7) Remove the 4-way valve by sliding the coil to the right.
[Removing the LEV coil (LEV (A), LEV (B)) ]
Outdoor Unit Thermistor <Discharge> (TH4) and Thermistor <Shell> (TH32) Replacement
(1) Remove the service panel. (See Photo 2)
(2) Remove the top panel. (See Photo 1)
(3) Remove the front panel. (See Photo 1)
(4) Remove the back panel. (See Photo 1)
(5) Remove the electrical parts box. (See Photo 5)
[Thermistor <Discharge> (TH4)]
(6) Pull out the thermistor <Discharge> (TH4) from the sensor holder. (See Photo 8)
[Thermistor <Shell> (TH32)]
(6) Pull out the thermistor <Shell> (TH32) from the sensor holder. (See Photo 8);
Outdoor Unit Power Receiver Replacement
Warning: This procedure requires trained personnel with PPE!
Service panel removed
Upload a photo of the removed service panel
Top panel removed
Upload a photo of the removed top panel
Front panel removed
Upload a photo of the removed front panel
Back panel removed
Upload a photo of the removed back panel
Outdoor Unit Electrical Parts Box Replacement
Upload a photo of the service panel before removal
Service panel removed
Upload a photo of the top panel before removal
Top panel removed
Upload a photo of the front panel before removal
Front panel removed
Indoor/outdoor connecting wire disconnected from terminal block
Remove all the following connectors from controller circuit board
Disconnected wire pulled out from the electrical parts box
Outdoor Unit Fan Motor Replacement
Remove the top panel
Upload a photo of the top panel removed
Remove the front panel
Upload a photo of the front panel removed
Remove 1 nut (M6, left-screw) and detach the propeller
Disconnect the connector CNF1 on the controller circuit board in the electrical parts box
Loosen the clamp for the lead wire in the motor support
Remove 4 fan motor fixing screws (4 × 18) and detach the fan motor
Upload a photo of the detached fan motor
Parts for Mitsubishi Split-Type, Heat Pump Air Conditioner PUHZ-RP35VHA4
Access the parts list for your equipment in MaintainX.
Inverter Starter Type, Hermetic Compressor - 0,9 KW
SNB130FGCH
Inverter Starter Type, Hermetic Compressor - 0,9 KW
SNB130FGCH
Inverter Starter Type, Hermetic Compressor - 0,9 KW
SNB130FGCH
