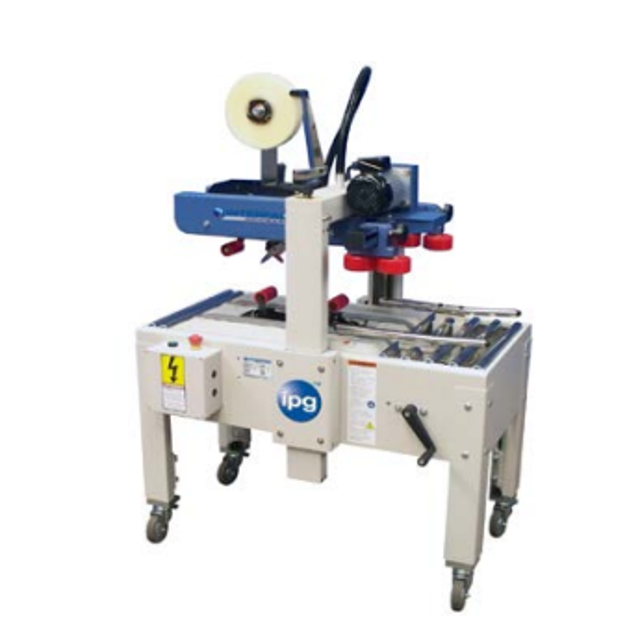

Intertape Polymer Group Case Sealer USC2020TB

Warning! Please Exercise All Safety Precautions Prior To Starting This Procedure. Disconnect Electrical Power And Wear Approved Safety Glasses

i. Insert An Air Nozzle Along The Top Edge Of The Belt Into The Opening Of The Drive Base And Clean Out Any Dust And Dirt

i. With A Cloth, Wipe Down Any Accumulation Of Dust And Dirt.

ii. Be Sure To Wipe Down Both Columns.

c. Connecting Chain For Centering Assembly

i. Blow Off Any Accumulation Of Dust And Dirt From The Connecting Chain;

Hardware: Re-Tighten any Loose Hardware

Plastic Guide Rollers: Check for free spinning. Disassemble and remove any adhesive build up

Knurled Teflon Coated One Direction Clutch Roller: Back off tension. Check for free spinning. Disassemble and remove any adhesive build up

Knurled Teflon Coated Guide Roller: Rotation should be slightly restricted by Belville washer. Disassemble and remove any adhesive build up if excessive restriction is detected

Front Red Wipe Down Rollers: Rotation should be slightly restricted by Belville washer. Disassemble and remove any adhesive build up if excessive restriction is detected

Rear Red Wipe Down Rollers: Check for free spinning. Disassemble and remove any adhesive build up

Carton Dust In/On Machine: Blow Off Machine Extenally and Internally

Carton Dust Inside Drive Bases: Remove Drive Base Cover

Blade Guard Oiler Pad: Lubricate

Hardware: Re-tighten any loose hardware

Hardware: Replace any missing hardware

Mandrel Assembly: Disassemble & Observe

Mandrel Spring: Check for weakness

Mandrel Shaft: Remove any dust and adhesive build up

Mandrel Bearing: Check for wear

Delrin Roller: Check for free spinning. Disassemble and remove any adhesive build up

Warning: This procedure requires trained personnel with appropriate tools!

Upper head assembly loose and moves excessively?

If not, report the issue to the maintenance team and stop the procedure

Upload a photo of the removed screws

Upper column guide bolts adjusted to reduce clearance?

Enter the clearance between column and guide for upper column

Both upper column guides adjusted equally?

Each column adjusted equally for upper column guides?
