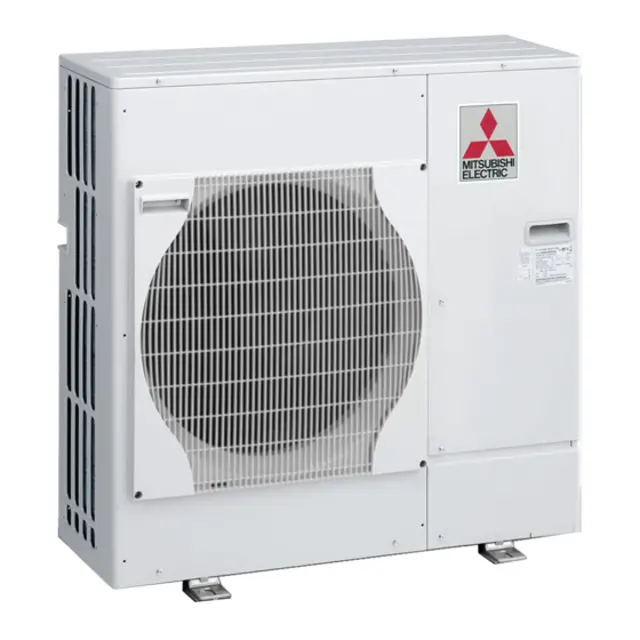

Mitsubishi Split-Type, Heat Pump Air Conditioner PUHZ-RP60VHA4
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Mitsubishi Split-Type, Heat Pump Air Conditioner PUHZ-RP60VHA4
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Mitsubishi Split-Type, Heat Pump Air Conditioner PUHZ-RP60VHA4
Create an account to install this asset package.
Maintenance Plans for Mitsubishi Split-Type, Heat Pump Air Conditioner Model PUHZ-RP60VHA4
Integrate maintenance plans directly into your work orders in MaintainX.
Outdoor Unit Compressor (MC) Replacement
Remove the service panel
Remove the top panel
Remove 2 front cover panel fixing screws (5 × 10) and remove the front cover panel
Remove 2 back cover panel fixing screws (5 × 10) and remove the back cover panel
Remove the electrical parts box
Remove 3 valve bed fixing screws (4 × 10) and 4 ball valve and stop valve fixing screws (5 × 16) and then remove the valve bed
Remove 3 right side panel fixing screws (5 × 10) in the rear of the unit then remove the right side panel
Remove 3 separator fixing screws (4 × 10) and remove the separator
Recover refrigerant
Outdoor Unit Thermistor <Outdoor 2-phase pipe> (TH6) Replacement
Warning: This procedure requires trained personnel with PPE!
Service panel removed
Upload a photo of the removed service panel
Top panel removed
Upload a photo of the removed top panel
Connector TH7/6 (red) on the controller circuit board disconnected
Clamp for the lead wire in the rear of the electrical parts box loosened
Upload a photo of the loosened clamp for the lead wire
Thermistor <Outdoor> (TH7) pulled out from the sensor holder
Outdoor Unit Power Receiver Replacement
Remove the service panel
Upload a photo of the removed service panel
Remove the top panel
Upload a photo of the removed top panel
Remove 2 front cover panel fixing screws (5 × 10) and remove the front cover panel
Upload a photo of the removed front cover panel
Remove 2 back cover panel fixing screws (5 × 10) and remove the back cover panel
Remove the electrical parts box
Upload a photo of the removed electrical parts box
Outdoor Unit LEV Replacement
Warning: This procedure requires trained personnel with PPE!
Upload a photo of the service panel before removal
Service panel removed
Upload a photo of the top panel before removal
Top panel removed
Upload a photo of the electrical parts box before removal
Electrical parts box removed
Valve bed fixing screws and ball valve and stop valve fixing screws removed
Right side panel fixing screws removed and right side panel removed
Outdoor Unit Thermistor <Outdoor> (TH7) Replacement
Remove the service panel
Remove the top panel
Disconnect the connector TH7/6 (red) on the controller circuit board in the electrical parts box
Loosen the clamp for the lead wire in the rear of the electrical parts box
Pull out the thermistor <Outdoor> (TH7) from the sensor holder
Note: In case of replacing thermistor <Outdoor> (TH7), replace it together with thermistor <Outdoor 2-phase pipe> (TH6), since they are combined together
Remove thermistor <Outdoor 2-phase pipe> (TH6)
Sign off on the thermistor replacement
