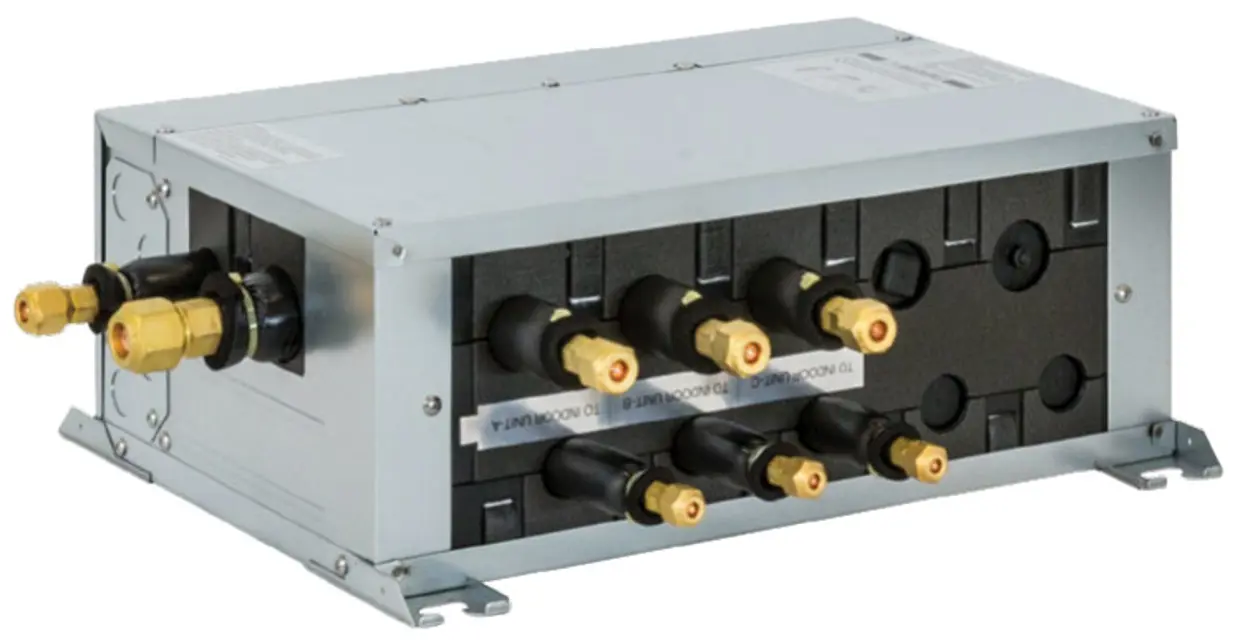

Mitsubishi Branch Box PAC-MKA32BC
Create an account to install this asset package.
Maintenance Plans for Mitsubishi Branch Box Model PAC-MKA32BC
Integrate maintenance plans directly into your work orders in MaintainX.
Thermistor (TH-A to E*) Disassembling
Warning: This procedure requires trained personnel with PPE!
Controller cover removed
Upload a photo of the removed controller cover
Under panel removed
Upload a photo of the removed under panel
8 insulations removed
9 pipe box (under) fixing screws removed
Upload a photo of the removed insulations and screws
Thermistor(s), TH-A to E, pulled out from the sensor holders
LEV Assembly Disassembling
Removing the LEV assy
Remove the controller cover
Remove the under panel
Remove 8 the insulations, then remove 9 pipe box (under) fixing screws (4 x 10)
Loosen the side clamps, then disconnect the LEV and thermistor connectors on the controller board
Remove the earth lead wires from the LEV assy
Pull out the lead wires through the hole to the pipe box side
Removing the header assy
Cut the band which fixes the header assy and LEV assy together, then remove the rubber mount
LEV Coil (LEV-A to E*) Disassembling
Warning: This procedure should be performed by trained personnel only
Controller cover removed
Upload a photo of the controller cover removal
Under cover removed
Upload a photo of the under cover removal
8 insulations removed
Number of pipe cover fixing screws removed
Upload a photo of the pipe cover fixing screws removal
Bands that fix the lead wire cut
Control Cover Disassembling
Controller Cover Removal
Number of controller cover fixing screws removed
Upload a photo of the detached controller cover
Under Panel Removal
Number of under panel fixing screws removed
Upload a photo of the removed under panel
Sign off on the control cover disassembling
Controller Board Disassembling
Controller cover removed
Upload a photo of the controller cover removal
Side clamps loosened and connectors disconnected
Controller board pulled forward
Upload a photo of the controller board pulled forward
Controller board removed from the holder
Sign off on the controller board disassembling
