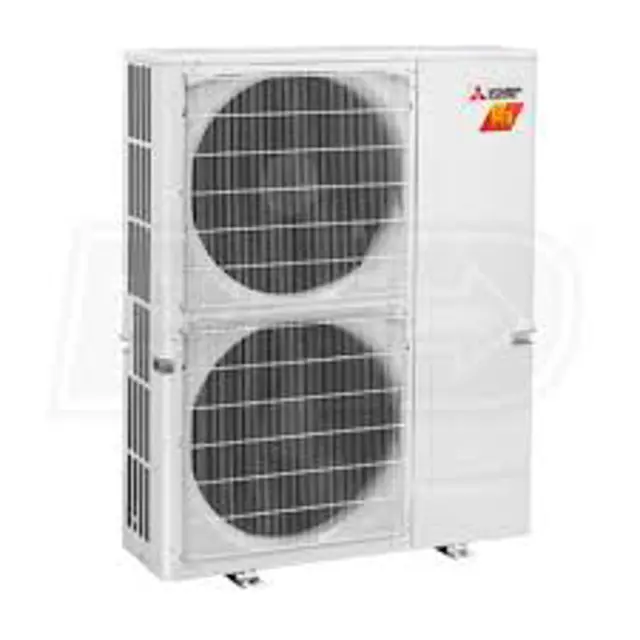

Mitsubishi Split-Type, Heat Pump Air Conditioner MXZ-4C36NAHZ-U1
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Mitsubishi Split-Type, Heat Pump Air Conditioner MXZ-4C36NAHZ-U1
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Mitsubishi Split-Type, Heat Pump Air Conditioner MXZ-4C36NAHZ-U1
Create an account to install this asset package.
Maintenance Plans for Mitsubishi Split-Type, Heat Pump Air Conditioner Model MXZ-4C36NAHZ-U1
Integrate maintenance plans directly into your work orders in MaintainX.
Low Pressure Sensor Replacement
Remove the service panel
Upload a photo of the removed service panel
Remove the top panel
Upload a photo of the removed top panel
Remove the cover panel (front)
Remove the cover panel (rear)
Remove the side panel (R)
Disconnect the connector 63LS (blue) on the multi controller circuit board in the electrical parts box
Remove the electrical parts box
Accumulator Replacement
Remove the service panel
Remove the top panel
Remove the front cover panel
Remove the back cover panel
Remove the side panel (R)
Remove the electrical parts box
Remove the valve bed
Recover refrigerant
Remove 2 welded pipes of accumulator inlet and outlet
Fan Motor Replacement
Remove the service panel
Upload a photo of the removed service panel
Remove the top panel
Upload a photo of the removed top panel
Remove 4 fan grille fixing screws (5 × 12) to detach the fan grille
Upload a photo of the detached fan grille
Remove a nut (for right handed screw of M6) to detach the propeller
Upload a photo of the detached propeller
Disconnect the connectors, CNF1 and CNF2 on the multi controller circuit board in the electrical parts box
Bypass Valve Coil And Bypass Valve Replacement
Remove the service panel
Remove the top panel
Remove the cover panel (front)
Remove the cover panel (rear)
Remove the side panel (R)
Remove the bypass valve coil fixing screw (M4 × 6)
Remove the bypass valve coil by sliding the coil upward
Disconnect the connector SV1 (gray) or SV2 (blue) on the multi controller circuit board in the electrical parts box
Remove the electrical parts box
4-Way Valve Replacement
Upload Photo 1 of the service panel and top panel removal
Upload Photo 5 of the electrical parts box removal
Upload Photo 4 and 7 of the valve bed removal
Upload Photo 4 of the cover panel (front) removal
Upload Photo 4 of the cover panel (rear) removal
Upload Photo 4 of the side panel (R) removal
Upload Photo 10 of the 4-way valve coil removal
Refrigerant recovered without spreading in the air?
Welded part of 4-way valve removed?
Parts for Mitsubishi Split-Type, Heat Pump Air Conditioner MXZ-4C36NAHZ-U1
Access the parts list for your equipment in MaintainX.
Inverter Starter Type, Hermetic Compressor - 2,8 KW
ANB33FJSMT
Inverter Starter Type, Hermetic Compressor - 2,8 KW
ANB33FJSMT
Inverter Starter Type, Hermetic Compressor - 2,8 KW
ANB33FJSMT
