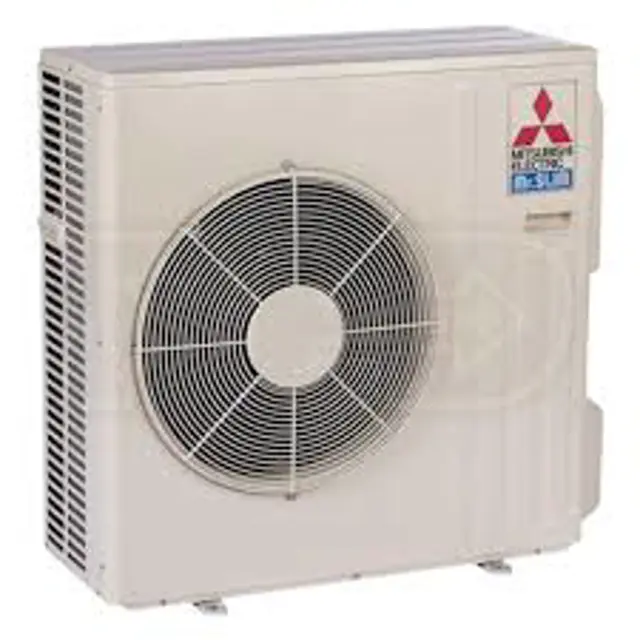

Mitsubishi Outdoor Unit MUZ-D36NA
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Mitsubishi Outdoor Unit MUZ-D36NA
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Mitsubishi Outdoor Unit MUZ-D36NA
Create an account to install this asset package.
Maintenance Plans for Mitsubishi Outdoor Unit Model MUZ-D36NA
Integrate maintenance plans directly into your work orders in MaintainX.
Compressor And 4-Way Valve Replacement
Remove the top panel, cabinet, service panel and the back panel
Remove the inverter assembly
Remove the R.V. coil
Recover gas from the refrigerant circuit until the pressure gauge shows 0 PSIG
Detach the brazed part of the suction and the discharge pipe connected with compressor
Remove the compressor nuts
Remove the compressor
Detach the brazed part of 4-way valve and pipe
Sign off on the compressor and 4-way valve replacement
Cabinet Replacement
Remove the screws of the service panel
Remove the screws of the top panel
Remove the screw of the valve cover
Remove the service panel
Remove the top panel
Remove the valve cover
Remove the screws of the cabinet
Remove the cabinet
Remove the screws of the back panel
Fan Motor Replacement
Warning: Ensure the power is off before starting the procedure
Top panel removed
Cabinet removed
Service panel removed
Back panel removed
CN931 and CN932 disconnected
Propeller removed
Screws fixing the outdoor fan motor removed
Outdoor fan motor removed
Thermistors Replacement
Warning: This procedure should be performed by a trained technician.
Top panel removed
Cabinet removed
Service panel removed
Back panel removed
CN661 disconnected
CN663 disconnected
Defrost thermistor pulled out from its holder
Discharge temperature thermistor pulled out from its holder
R.V. Coil Replacement
Warning: Ensure the power is off before starting the procedure
Top panel removed
Cabinet removed
Service panel removed
Back panel removed
Noise filter P.C. board disconnected
CN912 (4-way valve) disconnected
R.V. coil removed
Sign off on the coil replacement
Parts for Mitsubishi Outdoor Unit MUZ-D36NA
Access the parts list for your equipment in MaintainX.
Compressor
TNB220FMCHT
Compressor
TNB220FMCHT
Compressor
TNB220FMCHT
