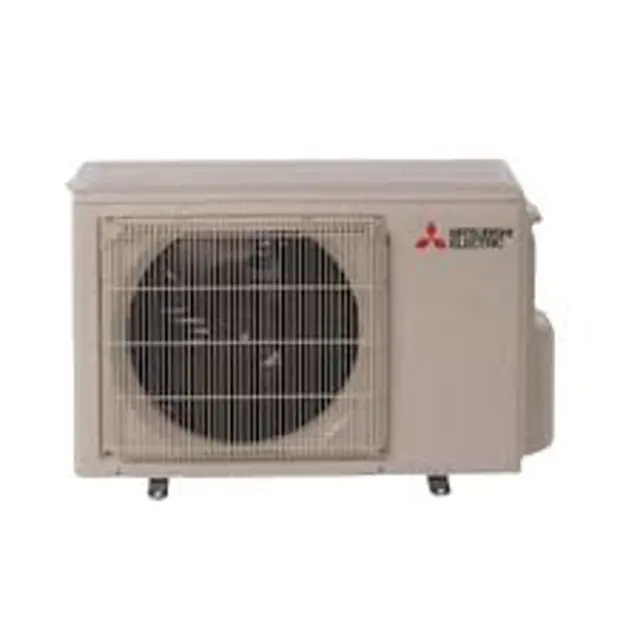

Mitsubishi Outdoor Unit MUZ-WR24NA

Need answers fast?
Explore the manual using AI.

Mitsubishi Outdoor Unit MUZ-WR24NA
Mitsubishi Outdoor Unit MUZ-WR24NA

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Mitsubishi Outdoor Unit MUZ-WR24NA

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Mitsubishi Outdoor Unit MUZ-WR24NA

Mitsubishi Outdoor Unit MUZ-WR24NA

Create an account to install this asset package.

Maintenance Plans for Mitsubishi Outdoor Unit Model MUZ-WR24NA

Integrate maintenance plans directly into your work orders in MaintainX.

R.V. Coil Replacement

Check mark

(1) Remove the cabinet and panels. (Refer to section 1.)

Check mark

(2) Disconnect the following connector:

Check mark

<Inverter P.C. board>

Check mark

CN721 (R.V. coil)

Check mark

(3) Remove the R.V. coil.;

Run this procedureArrow right

Outdoor Fan Replacement

Check mark

(1) Remove the top panel, cabinet and service panel. (Refer to section 1.)

Check mark

(2) Disconnect the following connectors:

Check mark

<Inverter P.C. board>

Check mark

CN931 and CN932 (Fan motor)

Check mark

(3) Remove the propeller fan nut.

Check mark

(4) Remove the propeller fan.

Check mark

(5) Remove all the screws fixing the fan motor.

Check mark

(6) Remove the fan motor.

Check mark

NOTE: The propeller fan nut is a reverse thread.;

Run this procedureArrow right

Thermistors Replacement

Check mark

(1) Remove the cabinet and panels. (Refer to section 1.)

Check mark

(2) Disconnect the lead wire to the reactor and the following connectors:

Check mark

<Inverter P.C. board>

Check mark

CN641 (Defrost thermistor and discharge temperature thermistor)

Check mark

CN643 (Ambient temperature thermistor)

Check mark

CN644 (Outdoor heat exchanger temperature thermistor)

Check mark

(3) Pull out the discharge temperature thermistor from its holder.

Check mark

(4) Pull out the defrost thermistor from its holder.

Check mark

(5) Pull out the outdoor heat exchanger temperature thermistor from its holder.

Run this procedureArrow right

Compressor And 4-Way Valve Replacement

Check mark

(1) Remove the top panel, cabinet and service panel. (Refer to section 1.)

Check mark

(2) Remove the back panel. (Refer to section 1.)

Check mark

(3) Remove the inverter assembly. (Refer to section 2.)

Check mark

(4) Recover gas from the refrigerant circuit.

Check mark

NOTE: Recover gas from the pipes until the pressure gauge shows 0 PSIG.

Check mark

(5) Detach the brazed part of the suction and the discharge pipe connected with compressor.

Check mark

(6) Remove the compressor nuts.

Check mark

(7) Remove the compressor.

Check mark

(8) Detach the brazed part of 4-way valve and pipe. (Photo 7);

Run this procedureArrow right

Inverter Assembly And Inverter P.C. Board Replacement

Check mark

Warning: This procedure requires trained personnel with PPE!

Check mark

Cabinet and panels removed

Check mark

Lead wire to the reactor disconnected

Check mark

Disconnect the following connectors

Check mark

Compressor connector removed

Check mark

Screw fixing the heat sink support and the separator removed

Check mark

Fixing screws of the terminal block support and the back panel removed

Check mark

Inverter assembly removed

Check mark

Screw of the ground wire, screw of the P.C. board cover and screws of the terminal block support removed

Run this procedureArrow right

Parts for Mitsubishi Outdoor Unit MUZ-WR24NA

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

Compressor

SNB130FQBMT

Compressor

SNB130FQBMT

Compressor

SNB130FQBMT
