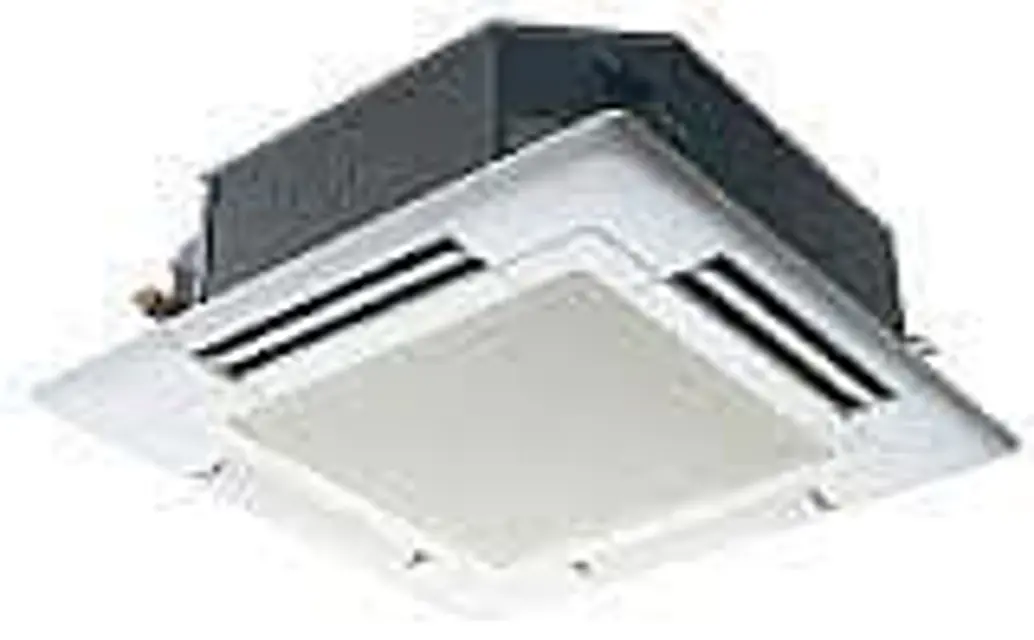

Mitsubishi Air Conditioner PLA-RP100BA

Upload a photo of the removed drain pan

Remove the 3 screws of the piping cover

Remove the 2 screws of coil plate

Remove the 2 screws of the coil

Remove the screw of the coil support

Sign off on the heat exchanger disassemble

Remove the air intake grille and the filter

Disconnect the connector CNV (White/20P)

Slide the corner panel to the direction of the arrow 1, and remove the corner panel

Remove the 2 screws from the panel which fix to the oval holes

Rotate the panel a little to come to the bell shaped hole where the screw is large and remove the panel

Upload a photo of the removed electrical box

Remove the bell mouth (3 screws)

Upload a photo of the removed bell mouth

Remove the wire cover (3 screws)

Disconnect the connector of the fan motor (CNMF)

Remove the air intake grille and the filter

Upload a photo of the removed air intake grille and filter

Remove the 2 screws from the reactor cover

Upload a photo of the reactor cover without screws

Disconnect the relay connector of reactor

Upload a photo of the disconnected relay connector

Remove 2 reactor fixing screws and remove the reactor

Upload a photo of the reactor after removal

Sign off on the reactor disassemble

Remove the air intake grille and the filter

Remove the 2 screws from the electrical box

Disconnect the connector CN20 (Red) from the indoor controller board

Remove the room temperature thermistor and holder
