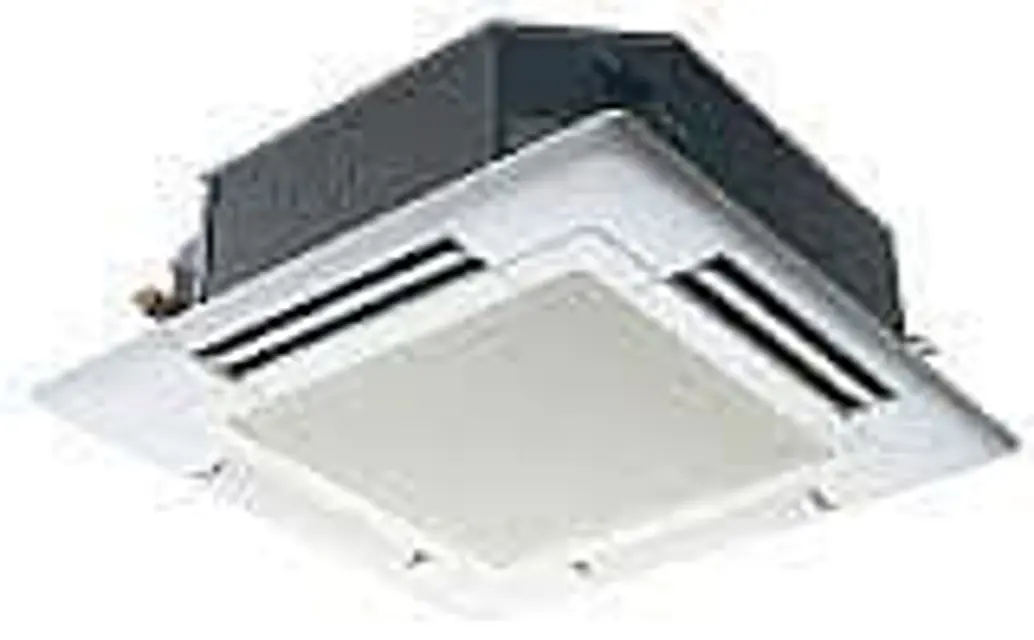

Mitsubishi Air Conditioner PLA-RP71BA

Remove the air intake grille and the filter

Upload a photo of the removed air intake grille and filter

Remove the 2 screws from the reactor cover

Upload a photo of the reactor cover without screws

Disconnect the relay connector of reactor

Upload a photo of the disconnected relay connector

Remove 2 reactor fixing screws and remove the reactor

Upload a photo of the reactor after removal

Sign off on the reactor disassemble

Slide the knob of air intake grille toward the arrow 1 to open the air intake grille

Remove drop prevention hook from the panel

Slide the shaft in the hinge to the direction of the arrow 2 and remove the air intake grille

Remove the air intake grille and the filter

Remove the 2 screws from the electrical box

Disconnect the connector CN20 (Red) from the indoor controller board

Remove the room temperature thermistor and holder

Upload a photo of the removed drain pan

Upload a photo of the removed turbo fan

Upload a photo of the removed wiring clamps

Remove the coil plate (2 screws)

Remove the thermistors which are inserted into the holders installed to the thin copper pipe

Disconnect the 4-pin white connector (CN44)

Remove the air intake grille and the filter

Remove the 2 screws from the electrical box cover

Remove the electrical wiring service panel (3 screws)

Remove the 4 screws and pull out the drain pan

Pull out the left and right of the pan gradually. Be careful not to crack or damage the pan.
