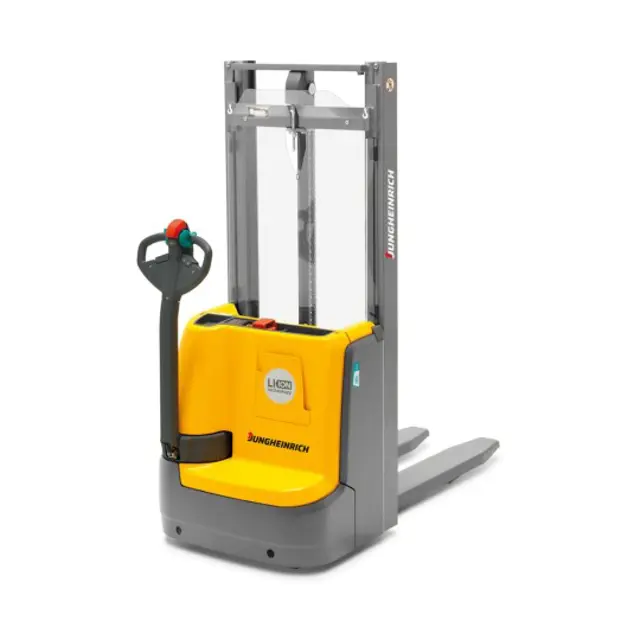

JUNGHEINRICH Pallet Stacker EJC 112N

Charge the battery after each discharge

After charging, check the electrolyte level of each battery cell and replenish as required

Is it necessary to add electrolyte with pure water up to the 'Max' electrolyte level marking (17)?

The electrolyte level should not be less than the 'Min' electrolyte marking (16) and must not exceed the 'Max' (17) marking

Quality of Water for Adding Electrolyte

The quality of the water used to add electrolyte must correspond to purified or distilled water

Warning: This maintenance check requires trained personnel with PPE!

Measure the insulation resistance of the truck in accordance with EN 1175-1

Measure the insulation resistance of the battery in accordance with DIN EN 1987-1

In accordance with DIN EN 50272-3 the battery insulation resistance should not be less than 50 Ω per volt of rated voltage

Does the battery insulation resistance meet the required standard?

Sign off on the battery maintenance

WARNING! The gases produced during charging can cause explosions. Always disconnect the charger and truck before connecting or disconnecting the charger and battery.

The charger must be adapted to the battery in terms of voltage, charge capacity and battery technology.

Check all cables and plug connections for visible signs of damage

Ventilate the room in which the truck is being charged. Battery cell surfaces must remain exposed during charging in order to ensure sufficient ventilation.

Do not smoke and avoid naked flames when handling batteries. Fire protection equipment must be available.

Do not place any metallic objects on the battery. Always follow the safety regulations of the battery and charger station manufacturers.

NOTE: Charging the battery incorrectly can result in material damage. Always charge the battery with DC current.

All DIN 41773 charging procedures are permitted in the format approved by the manufacturer. Always connect the battery to a charger that is appropriate to the size and type of the battery.

Do not exceed the limit currents in accordance with DIN EN 50272-3 in the gassing area.

Warning: This maintenance check requires trained personnel with PPE!

Measure the insulation resistance of the truck in accordance with EN 1175-1

Measure the insulation resistance of the battery in accordance with DIN EN 1987-1

Battery insulation resistance not less than 50 Ω per volt of rated voltage?

Sign off on the battery maintenance

After re-charging, is there any visible dirt or physical damage?

Is the battery charged regularly according to the IU characteristic?

Carry out a compensation charge

Sign off on the battery maintenance
