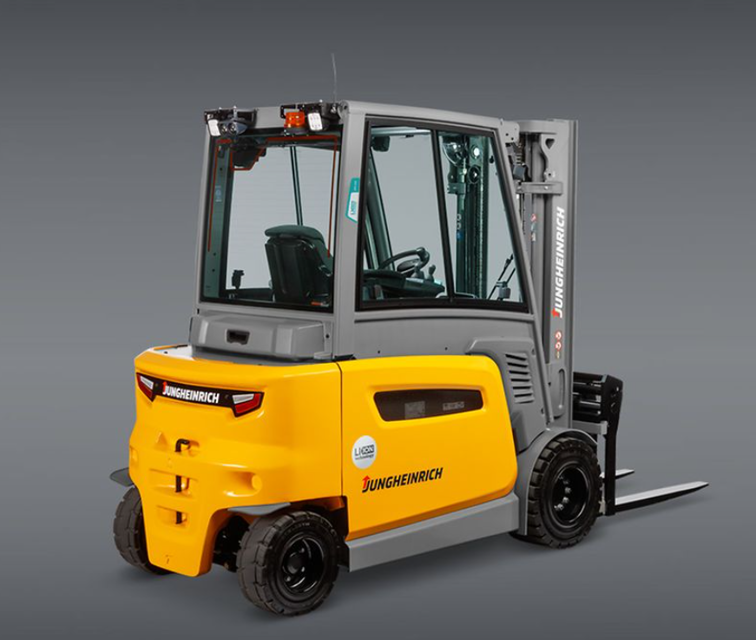

JUNGHEINRICH Industrial Truck EFG 425

A truck tipover can cause accidents

In order to raise the truck, use only suitable lifting gear at the points specially provided for this purpose.

Note the weight of the truck on the data plate.

Always use a jack with a minimum capacity of 5000 kg.

Raise the unladen truck on a level surface.

When raising the truck, prevent it from slipping or tipping over through suitable means (wedges, wooden blocks) with a minimum capacity of 5000 kg – see page 317.

Ensure that the truck is in a safe position and has a good centre of gravity.

WARNING! Accident risk during battery removal and installation. Due to the battery weight and acid there is a risk of trapping or scalding when the battery is removed and installed.

Note the safety regulations governing the handling of lead-acid batteries.

Wear safety shoes when removing and installing the battery.

Use only batteries with insulated cells and terminal connectors.

Park the truck on a level surface to prevent the battery from sliding out.

Make sure the crane lifting gear has sufficient capacity to replace the battery.

Use only approved battery replacement devices (battery roller stand, replacement trolley etc.).

Make sure the battery is located securely in the truck's battery compartment.

CAUTION! Trapping hazard when replacing the battery. When replacing the battery do not reach between the battery and the chassis.

Warning: Dispose of the hydraulic oil and hydraulic oil filter and fuel in accordance with environmental regulations.

Truck parked on a level surface

Truck prepared for maintenance and repair work

Oil collection container placed underneath

WARNING! Malfunctioning brake due to incorrect consumable. Using brake fluid can cause the brake to fail. Only use authorised brake oil according to the consumables table, see page 312.

Loosen the nuts and remove the cover (274)

Check the brake fluid level in the brake fluid reservoir (273)

The level in the reservoir is between the MIN and MAX markings

If necessary, open the lid of the reservoir and top up the brake fluid

After filling, close the lid of the reservoir again and refit the cover

Sign off on the brake oil level check

CAUTION! Trapping hazard when replacing the battery. Do not reach between the battery and the chassis. Wear safety shoes.

Battery trolley with six rollers available

Pallet truck with SnapFit battery holder or hand pallet truck with SnapFit battery holder available

Suitable crane with suitable crane cross member to lift the battery by crane available

Charging station intended for the battery type available
