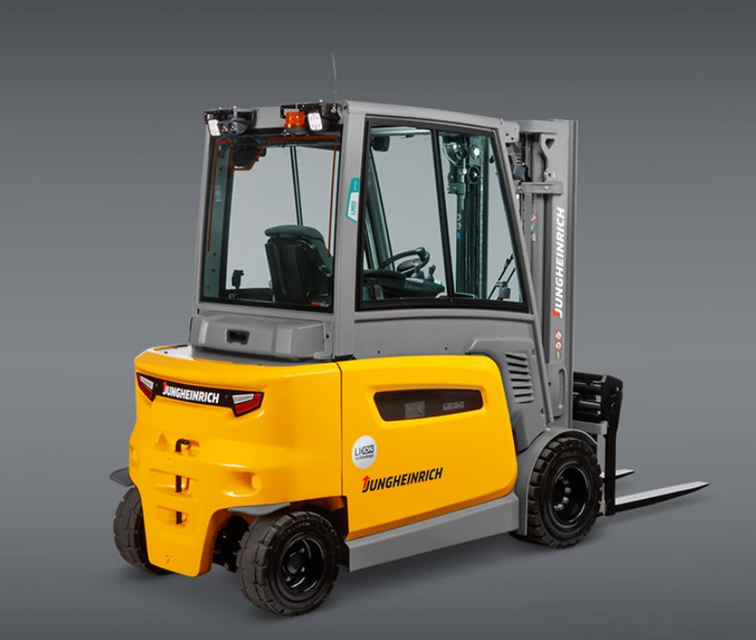

JUNGHEINRICH Industrial Truck EFGS30

Park the truck securely on a level surface

Place the oil pan under the axle

Unscrew the oil check plug (271)

Does the oil level reach the bottom mark of the oil check hole (271)?

Top up if necessary through the filler hole (271)

Sign off on the brake oil level check

WARNING!: After inserting the battery close the battery lock.

CAUTION! Trapping hazard when replacing the battery. Do not reach between the battery and the chassis. Wear safety shoes.

Battery removal and installation Requirements

External roller guided replacement device

Lubricate the contact surfaces of the mast

Correct the hydraulic-oil level

Correct the fill level of the windscreen washer reservoir

Correct the battery-acid level using demineralised water

Test emergency disconnect switch and check for damage

Using different tyres can cause accidents

The quality of the tyres affects the operational stability and performance of the truck.

The diameter of the wheels must differ by no more than 15 mm.

Always replace tyres in pairs, i.e. left and right at the same time. After replacing the tyres, check that the wheel bolts/nuts are secure after 10 operating hours.

Always use tyres of the same make, model and profile.

Checking the mounting of wheels

– Truck prepared for maintenance and repair work (see page 314).

Risk of electrical-system damage

Cleaning the electronic system assemblies (controllers, sensors, motors etc.) with water can damage the electrical system.

Do not clean the electrical system with water.

Clean the electrical system with weak suction or compressed air (use a compressor with a water trap) and a non-conductive, anti-static brush.

Cleaning the electrical system assemblies

– Truck prepared for maintenance and repair work – see page 314.
