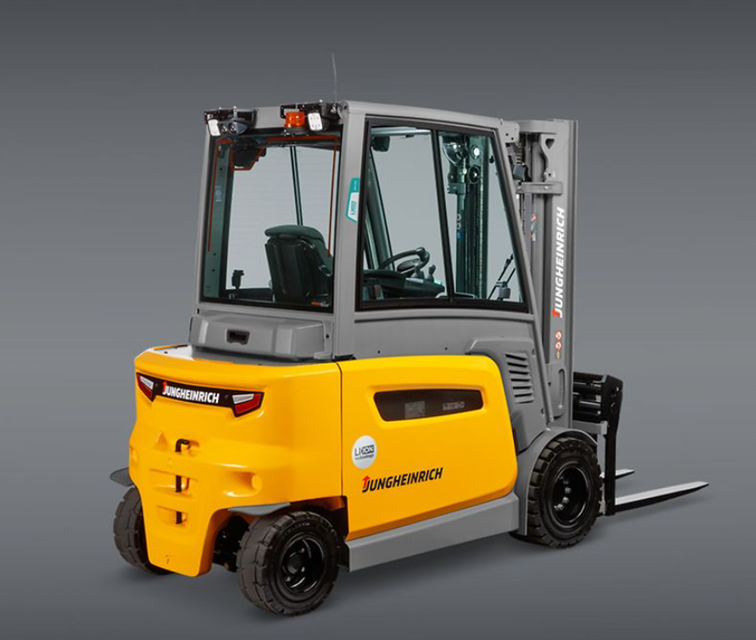

JUNGHEINRICH Industrial Truck EFG 430k
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
JUNGHEINRICH Industrial Truck EFG 430k
Create an account to install this asset package.
Maintenance Plans for JUNGHEINRICH Industrial Truck Model EFG 430k
Integrate maintenance plans directly into your work orders in MaintainX.
Ventilation / Discharge Filter Replacement
Warning: Dispose of the hydraulic oil and hydraulic oil filter and fuel in accordance with environmental regulations.
Truck parked on a level surface
Truck prepared for maintenance and repair work
Floor plate removed
Ventilation/discharge filter unscrewed with the oil dipstick
New ventilation/discharge filter screwed in
Upload a photo of the replaced filter
Sign off on the filter replacement
Hand Pallet Truck With Snapfit Removal
WARNING!: After inserting the battery close the battery lock and then lower the pallet truck.
CAUTION! Trapping hazard when replacing the battery. Do not reach between the battery and the chassis. Wear safety shoes.
Requirements – Truck parked securely, see page 158. – Battery exposed – see page 77.
Tools and Material Required – Battery trolley with six rollers – Hand pallet truck with battery holder inserted
Close the safety catches (85).
Press the pedals (86).
Move the hand pallet truck approx. 200 mm underneath the truck base so that it is central with the battery.
Raise the fork arms of the hand pallet truck until they are just under the floor plate (97).
Insert the battery connector (82) in the bracket.
Hydraulic Oil Filter Replacement
Warning: Dispose of the hydraulic oil and hydraulic oil filter and fuel in accordance with environmental regulations.
Truck parked on a level surface
Truck prepared for maintenance and repair work
Floor plate removed
Procedure
Oil collection container placed underneath to collect any drips
Sealing cap undone and removed
Filter element removed upwards
New filter element inserted
Battery Using Roller Conveyor Removal
WARNING!: After inserting the battery close the battery lock.
CAUTION! Trapping hazard when replacing the battery. Do not reach between the battery and the chassis. Wear safety shoes.
Battery removal and installation Requirements
Park the truck securely
Battery exposed
Battery disconnected
Battery lock released
Tools and Material Required
External roller guided replacement device available
50 Hourly / 1 Weekly Industrial Truck Maintenance
Brakes
Test the brake.
Hydraulic operations
Lubricate the load chains.
Lubricate the contact surfaces of the mast.
Correct the hydraulic-oil level.
Windscreen washing system
Chassis/structure
Correct the fill level of the windscreen washer reservoir.
Parts for JUNGHEINRICH Industrial Truck EFG 430k
Access the parts list for your equipment in MaintainX.
Jungheinrich Hydraulic Oil 1 HVLP 32 1l
51132826
Jungheinrich Hydraulic Oil 1 HVLP 32 5l
51132827
Jungheinrich Hydraulic Oil 1 HVLP 32 20l
51188578
Renolin 22 HLPD 5l
51037497
Renolin 22 HLPD 20l
50429647
Jungheinrich Hydraulic Oil 1 HVLP 32 1l
51132826
Jungheinrich Hydraulic Oil 1 HVLP 32 5l
51132827
Jungheinrich Hydraulic Oil 1 HVLP 32 20l
51188578
Renolin 22 HLPD 5l
51037497
Renolin 22 HLPD 20l
50429647
Jungheinrich Hydraulic Oil 1 HVLP 32 1l
51132826
Jungheinrich Hydraulic Oil 1 HVLP 32 5l
51132827
Jungheinrich Hydraulic Oil 1 HVLP 32 20l
51188578
Renolin 22 HLPD 5l
51037497
Renolin 22 HLPD 20l
50429647
