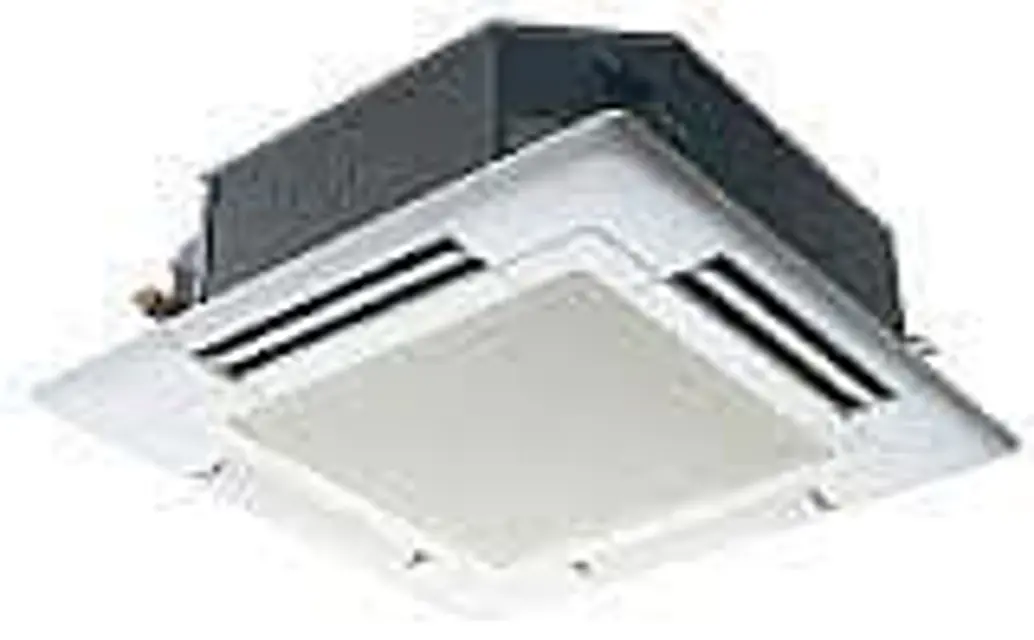

Mitsubishi Air Conditioner PLA-RP100BA2

Upload a photo of the removed drain pan

Upload a photo of the removed turbo fan

Upload a photo of the removed wiring clamps

Remove the coil plate (2 screws)

Remove the thermistors which are inserted into the holders installed to the thin copper pipe

Disconnect the 4-pin white connector (CN44)

Upload a photo of the removed drain pan

Cut the hose band and remove the hose

Remove the drain pump assembly (3 screws and 2 hooks)

Remove the drain pump (3 screws)

Remove the float switch (2 screws)

Sign off on the disassembly process

Remove the air intake grille and the filter

Remove the 2 screws from the electrical box cover

Remove 2 electrical box fixing screws and remove 2 hooks

Check the electrical parts in the electrical box

Remove the air intake grille and the filter

Remove the 2 screws from the electrical box cover

Remove the electrical wiring service panel (3 screws)

Remove the 4 screws and pull out the drain pan

Pull out the left and right of the pan gradually. Be careful not to crack or damage the pan.

Remove the air intake grille and the filter

Remove the 2 screws from the electrical box cover

Remove the 6 supports from indoor controller board

Remove the indoor controller board
