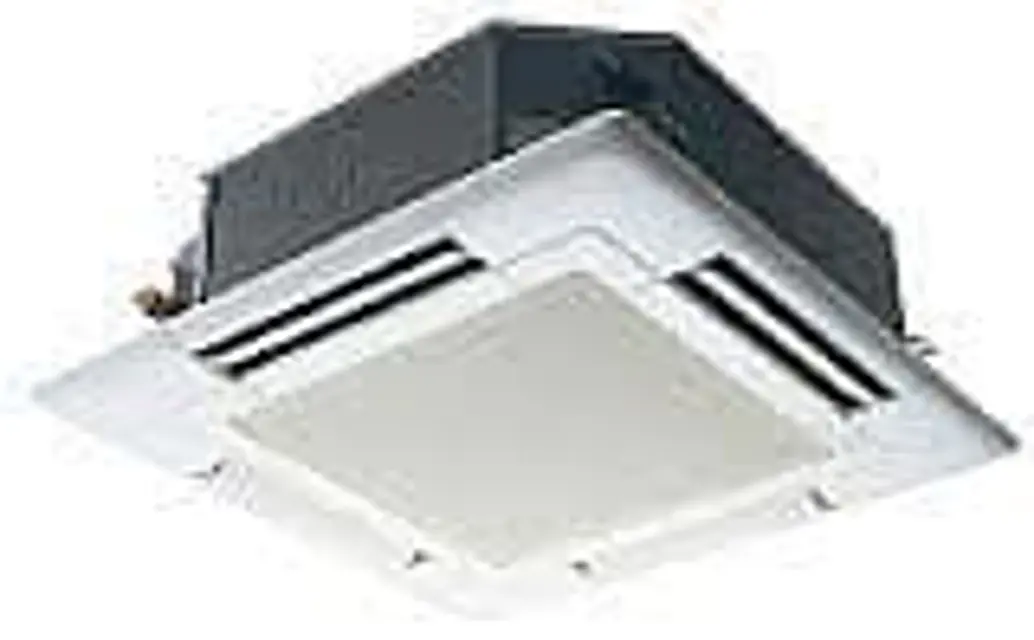

Mitsubishi Air Conditioner PLA-RP35BA

Refrigerant recovered from the unit completely

Refrigerant not released in the air

Cycle charged with specified amount of refrigerant after service

Filter drier installed for new refrigerant

Cylinder for R410A is a syphon type

Charging performed with the cylinder of syphon stood vertically

Remove the air intake grille and the filter

Remove the 2 screws from the electrical box cover

Remove the electrical wiring service panel (3 screws)

Remove the 4 screws and pull out the drain pan

Pull out the left and right of the pan gradually. Be careful not to crack or damage the pan.

Upload a photo of the removed drain pan

Cut the hose band and remove the hose

Remove the drain pump assembly (3 screws and 2 hooks)

Remove the drain pump (3 screws)

Remove the float switch (2 screws)

Sign off on the disassembly process

Upload a photo of the removed drain pan

Remove the 3 screws of the piping cover

Remove the 2 screws of coil plate

Remove the 2 screws of the coil

Remove the screw of the coil support

Sign off on the heat exchanger disassemble

Slide the knob of air intake grille toward the arrow 1 to open the air intake grille

Remove drop prevention hook from the panel

Slide the shaft in the hinge to the direction of the arrow 2 and remove the air intake grille
