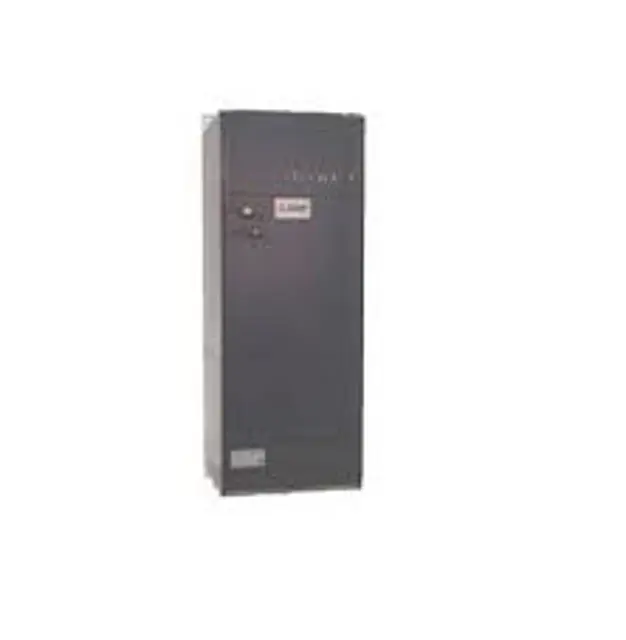

Mitsubishi Air Conditioner PVFY-P12NAMU-E

Exercise caution when removing heavy parts.

Remove the Filter panel (2 thumbscrews).

Remove the Blower panel (2 screws).

Remove the cover over the Return Air thermistor box and unplug the thermistor.

Pull out the thermistor holder and thermistor inside the box.

Sign off on the disassembly process.

Exercise caution when removing heavy parts.

1. Remove the Electrical, Blower and Filter panel indicated in sections 1 and 2.

2. Remove the Coil panel by removing all of the screws securing it to the (3) smaller panels for refrigerant and drain lines.

3. Slide the smaller panels in the directions indicated and remove.

4. Remove the (1 or 2) brackets that secure the coil,

unplug the thermistors and LEV from the control board and route the wires out of the control box area and into the coil section.

Next, slide the coil from the frame.

5. Remove the plate covering the coil assembly to access the thermistors.

6. Remove lower and side drain pan.;

Exercise caution when removing heavy parts.

1. Remove the Blower and Filter panel (along with filter if installed) indicated in section 2.

2. Remove the (1 or 2) brackets that secure the coil assembly. (Fig.11)

3. Remove the door that covers the small enclosure attached to the fan assembly (Fig.12).

Unplug the motor and route the wire harness out of the enclosure.

4. Remove the (2) screws that secure the fan assembly and slide out.;

Exercise caution when removing heavy parts.

Remove the Electric panel (2 screws)

Remove the Control box cover (1 screw)
