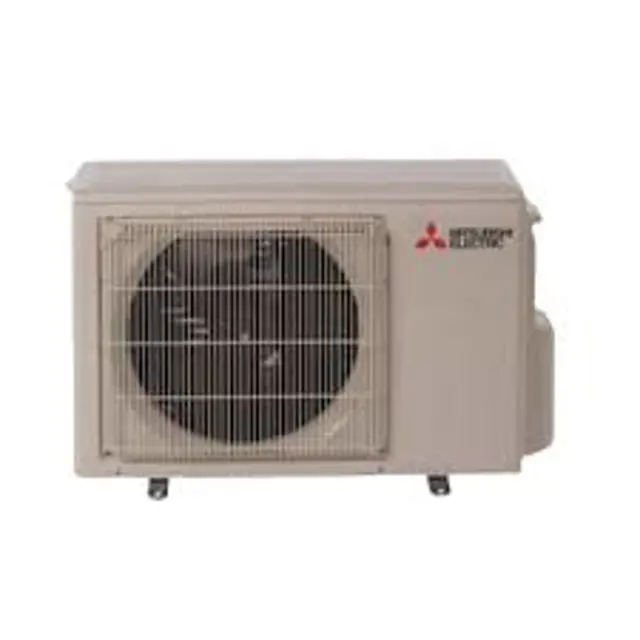

Mitsubishi Outdoor Unit MUZ-WR12NA

Need answers fast?
Explore the manual using AI.

Mitsubishi Outdoor Unit MUZ-WR12NA
Mitsubishi Outdoor Unit MUZ-WR12NA

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Mitsubishi Outdoor Unit MUZ-WR12NA

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Mitsubishi Outdoor Unit MUZ-WR12NA

Mitsubishi Outdoor Unit MUZ-WR12NA

Create an account to install this asset package.

Maintenance Plans for Mitsubishi Outdoor Unit Model MUZ-WR12NA

Integrate maintenance plans directly into your work orders in MaintainX.

Thermistors Replacement

Check mark

(1) Remove the cabinet and panels. (Refer to section 1.)

Check mark

(2) Disconnect the lead wire to the reactor and the following connectors:

Check mark

<Inverter P.C. board>

Check mark

CN641 (Defrost thermistor and discharge temperature thermistor)

Check mark

CN643 (Ambient temperature thermistor)

Check mark

CN644 (Outdoor heat exchanger temperature thermistor)

Check mark

(3) Pull out the discharge temperature thermistor from its holder.

Check mark

(4) Pull out the defrost thermistor from its holder.

Check mark

(5) Pull out the outdoor heat exchanger temperature thermistor from its holder.

Run this procedureArrow right

Inverter Assembly And Inverter P.C. Board Replacement

Check mark

Remove the cabinet and panels

Check mark

Disconnect the lead wire to the reactor

Check mark

Disconnect the following connectors

Check mark

Remove the compressor connector (CN61)

Check mark

Remove all the screws fixing the heat sink support and the separator

Check mark

Remove the fixing screws of the terminal block support and the back panel

Check mark

Remove the inverter assembly

Check mark

Remove the screw of the ground wire and screw of the terminal block support

Check mark

Remove the heat sink support from the P.C. board support

Run this procedureArrow right

Compressor And 4-Way Valve Replacement

Check mark

(1) Remove the cabinet and panels. (Refer to section 1.)

Check mark

(2) Remove the inverter assembly. (Refer to section 2.)

Check mark

(3) Remove all the screws fixing the reactor.

Check mark

(4) Remove the reactor.

Check mark

(5) Remove the soundproof felt.

Check mark

(6) Recover gas from the refrigerant circuit.

Check mark

NOTE: Recover gas from the pipes until the pressure gauge shows 0 PSIG.

Check mark

(7) Detach the brazed part of the suction and the discharge pipe connected with compressor.

Check mark

(8) Remove the nuts fixing the compressor.

Run this procedureArrow right

Fan Motor Replacement

Check mark

(1) Remove the cabinet and panels. (Refer to section 1.)

Check mark

(2) Disconnect the following connectors:

Check mark

<Inverter P.C. board>

Check mark

CN931, CN932 (Fan motor)

Check mark

(3) Remove the propeller fan nut.

Check mark

(4) Remove the propeller fan.

Check mark

(5) Remove all the screws fixing the fan motor.

Check mark

(6) Remove the fan motor.

Check mark

NOTE: The propeller fan nut is a reverse thread.;

Run this procedureArrow right

R.V. Coil Replacement

Check mark

(1) Remove the cabinet and panels. (Refer to section 1.)

Check mark

(2) Disconnect the following connectors:

Check mark

<Inverter P.C. board>

Check mark

CN721 (R.V. coil)

Check mark

(3) Remove the R.V. coil.;

Run this procedureArrow right

Parts for Mitsubishi Outdoor Unit MUZ-WR12NA

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

Compressor For U1

KNB073FRVMC

Compressor For U2

KNB073FRXMC

Compressor For U1

KNB073FRVMC

Compressor For U2

KNB073FRXMC

Compressor For U1

KNB073FRVMC

Compressor For U2

KNB073FRXMC
