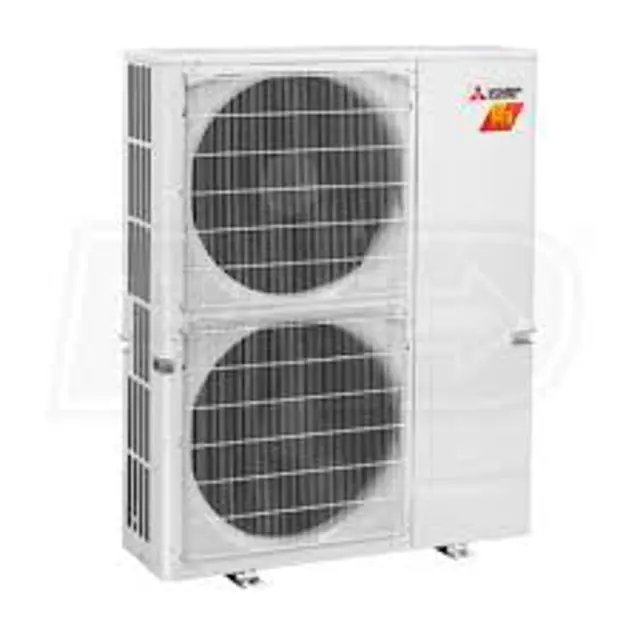

Mitsubishi Split-Type, Heat Pump Air Conditioner MXZ-8C48NAHZ
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Mitsubishi Split-Type, Heat Pump Air Conditioner MXZ-8C48NAHZ
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Mitsubishi Split-Type, Heat Pump Air Conditioner MXZ-8C48NAHZ
Create an account to install this asset package.
Maintenance Plans for Mitsubishi Split-Type, Heat Pump Air Conditioner Model MXZ-8C48NAHZ
Integrate maintenance plans directly into your work orders in MaintainX.
TH2/TH3 And TH4 Thermistors Replacement
Remove the service panel
Upload a photo of the removed service panel
Disconnect the connectors, TH3 (white) and TH4 (white), TH2 (black) on the multi controller circuit board in the electrical parts box
Loosen the clamp for the lead wire in the rear of the electrical parts box
Pull out the thermistor <Outdoor liquid pipe> (TH3) and thermistor <Compressor> (TH4) from the sensor holder
Upload a photo of the thermistors after removal
Sign off on the thermistors replacement
TH7 Thermistor Replacement
Remove the service panel
Upload a photo of the removed service panel
Remove the top panel
Upload a photo of the removed top panel
Disconnect the connector TH7/6 (red) on the multi controller circuit board in the electrical parts box
Loosen the wire clamps on top of the electrical parts box
Upload a photo of the loosened wire clamps
Pull out the thermistor <Ambient> (TH7) from the sensor holder
Note: When replacing thermistor <Ambient> (TH7), replace it together with thermistor <Suction pipe> (TH6), since they are combined together
High Pressure Switch And High Pressure Sensor Replacement
Remove the service panel
Remove the top panel
Remove the cover panel (front)
Remove the cover panel (rear)
Remove the side panel (R)
Pull out the lead wire of high pressure switch and high pressure sensor
Remove the electrical parts box
Recover refrigerant
Remove the welded part of high pressure switch and high pressure sensor
Base Heater Replacement
Warning: This procedure requires trained personnel with PPE!
Upload a photo of the service panel before removal
Service panel removed successfully
Upload a photo of the top panel before removal
Top panel removed successfully
Number of fan grille fixing screws removed
Upload a photo of the detached fan grille
Propeller detached successfully
Select all connectors removed from multi controller circuit board
TH6 Thermistor Replacement
Warning: This procedure requires trained personnel with PPE!
Upload a photo of the service panel before removal
Service panel removed successfully?
Upload a photo of the top panel before removal
Top panel removed successfully?
Connector TH7/6 disconnected successfully?
Wire clamps loosened successfully?
Thermistor <Suction pipe> (TH6) pulled out successfully?
Note: When replacing thermistor <Suction pipe> (TH6), replace it together with thermistor <Ambient> (TH7) since they are combined together.
Parts for Mitsubishi Split-Type, Heat Pump Air Conditioner MXZ-8C48NAHZ
Access the parts list for your equipment in MaintainX.
Inverter Starter Type, Hermetic Compressor - 3,4 KW
ANB33FJSMT
Inverter Starter Type, Hermetic Compressor - 3,4 KW
ANB33FJSMT
Inverter Starter Type, Hermetic Compressor - 3,4 KW
ANB33FJSMT
