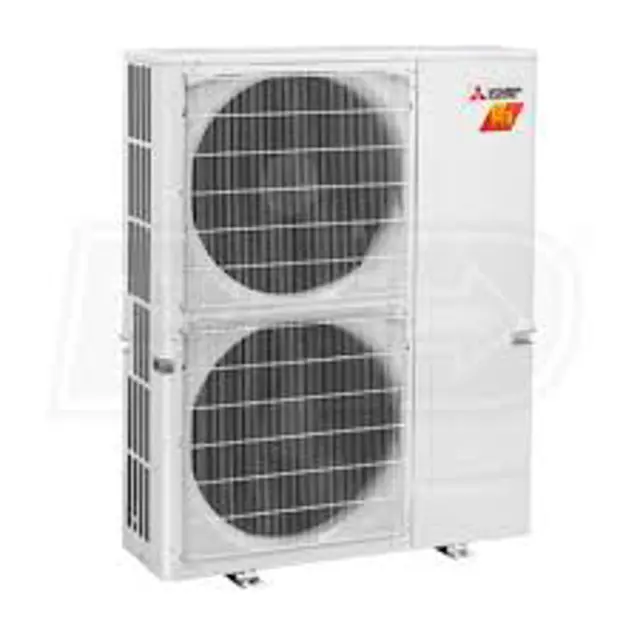

Mitsubishi Split-Type, Heat Pump Air Conditioner MXZ-8C48NAHZ-U1
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Mitsubishi Split-Type, Heat Pump Air Conditioner MXZ-8C48NAHZ-U1
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Mitsubishi Split-Type, Heat Pump Air Conditioner MXZ-8C48NAHZ-U1
Create an account to install this asset package.
Maintenance Plans for Mitsubishi Split-Type, Heat Pump Air Conditioner Model MXZ-8C48NAHZ-U1
Integrate maintenance plans directly into your work orders in MaintainX.
Fan Motor Replacement
Warning: Ensure the power is off before starting the procedure
Service panel removed
Upload a photo of the removed service panel
Top panel removed
Upload a photo of the removed top panel
Fan grille detached
Upload a photo of the detached fan grille
Propeller detached
Upload a photo of the detached propeller
TH2/TH3 And TH4 Thermistors Replacement
Service panel removed
Upload a photo of the removed service panel
Connectors TH3 (white), TH4 (white), and TH2 (black) disconnected
Clamp for the lead wire loosened
Thermistor <Outdoor liquid pipe> (TH3) and thermistor <Compressor> (TH4) pulled out from the sensor holder
Upload a photo of the sensor holder after thermistors removal
Sign off on the thermistors replacement
TH7 Thermistor Replacement
Remove the service panel
Upload a photo of the removed service panel
Remove the top panel
Upload a photo of the removed top panel
Disconnect the connector TH7/6 (red) on the multi controller circuit board in the electrical parts box
Loosen the wire clamps on top of the electrical parts box
Upload a photo of the loosened wire clamps
Pull out the thermistor <Ambient> (TH7) from the sensor holder
Note: When replacing thermistor <Ambient> (TH7), replace it together with thermistor <Suction pipe> (TH6), since they are combined together
Reactor Replacement
Remove the service panel
Upload a photo of the removed service panel
Remove the top panel
Upload a photo of the removed top panel
Remove the electrical parts box
Upload a photo of the removed electrical parts box
Remove 4 screws for reactor (4 x 10) to remove the reactor
Upload a photo of the removed reactor
Sign off on the reactor replacement
Electronic Expansion Valve Replacement
Upload Photo 1 of the service panel removal
Upload Photo 1 of the top panel removal
Refer to procedure 8(5) for cover panel (front) removal
Refer to procedure 8(6) for cover panel (rear) removal
Refer to procedure 8(7) for side panel (R) removal
Upload Photo 11,12 of the electrical expansion valve coil removal
Upload Photo 5 of the electrical parts box removal
Refrigerant recovered successfully?
Remove the welded part of electrical expansion valve. Refer to the notes on the right
Parts for Mitsubishi Split-Type, Heat Pump Air Conditioner MXZ-8C48NAHZ-U1
Access the parts list for your equipment in MaintainX.
Inverter Starter Type, Hermetic Compressor - 3,4 KW
ANB33FJSMT
Inverter Starter Type, Hermetic Compressor - 3,4 KW
ANB33FJSMT
Inverter Starter Type, Hermetic Compressor - 3,4 KW
ANB33FJSMT
