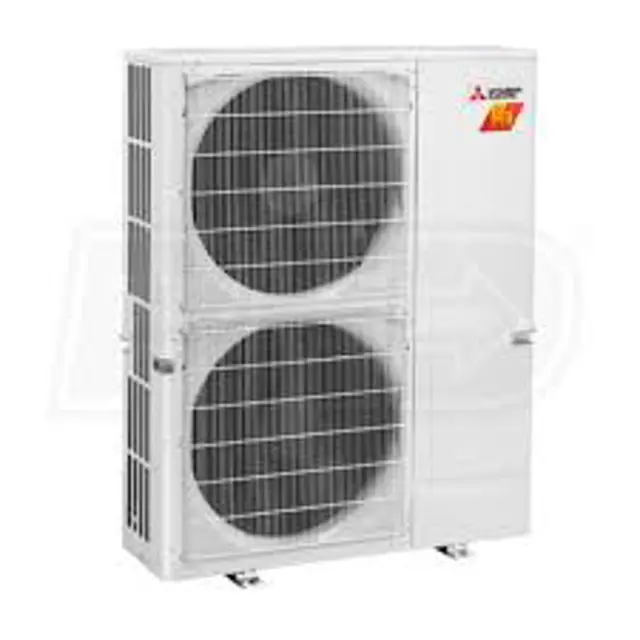

Mitsubishi Split-Type, Heat Pump Air Conditioner MXZ-5C42NAHZ-U1
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Mitsubishi Split-Type, Heat Pump Air Conditioner MXZ-5C42NAHZ-U1
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Mitsubishi Split-Type, Heat Pump Air Conditioner MXZ-5C42NAHZ-U1
Create an account to install this asset package.
Maintenance Plans for Mitsubishi Split-Type, Heat Pump Air Conditioner Model MXZ-5C42NAHZ-U1
Integrate maintenance plans directly into your work orders in MaintainX.
Outdoor Unit Refrigirant Charging
Cautions for service
Refrigerant recovered from the unit completely
Refrigerant not released in the air
Cycle charged with specified amount of refrigerant
Filter drier installed for service
Additional refrigerant charge
Cylinder for R410A is a syphon type
Charging performed with the cylinder of syphon stood vertically
Service tools
Bypass Valve Coil And Bypass Valve Replacement
Remove the service panel
Remove the top panel
Remove the cover panel (front)
Remove the cover panel (rear)
Remove the side panel (R)
Remove the bypass valve coil fixing screw (M4 × 6)
Remove the bypass valve coil by sliding the coil upward
Disconnect the connector SV1 (gray) or SV2 (blue) on the multi controller circuit board in the electrical parts box
Remove the electrical parts box
Electrical Parts Box Replacement
Upload a photo of the service panel before removal
Service panel removed successfully
Upload a photo of the top panel before removal
Top panel removed successfully
Connecting wire disconnected from terminal block
Remove connectors from multi controller circuit board
Disconnected wire pulled out from the electrical parts box
Upload a photo of the terminal cover before removal
Terminal cover removed and compressor lead wire disconnected from the comp. terminal
TH7 Thermistor Replacement
Remove the service panel
Upload a photo of the removed service panel
Remove the top panel
Upload a photo of the removed top panel
Disconnect the connector TH7/6 (red) on the multi controller circuit board in the electrical parts box
Loosen the wire clamps on top of the electrical parts box
Upload a photo of the loosened wire clamps
Pull out the thermistor <Ambient> (TH7) from the sensor holder
Note: When replacing thermistor <Ambient> (TH7), replace it together with thermistor <Suction pipe> (TH6), since they are combined together
High Pressure Switch And High Pressure Sensor Replacement
Remove the service panel
Remove the top panel
Remove the cover panel (front)
Remove the cover panel (rear)
Remove the side panel (R)
Pull out the lead wire of high pressure switch and high pressure sensor
Remove the electrical parts box
Recover refrigerant
Remove the welded part of high pressure switch and high pressure sensor
Parts for Mitsubishi Split-Type, Heat Pump Air Conditioner MXZ-5C42NAHZ-U1
Access the parts list for your equipment in MaintainX.
Inverter Starter Type, Hermetic Compressor - 3,0 KW
ANB33FJSMT
Inverter Starter Type, Hermetic Compressor - 3,0 KW
ANB33FJSMT
Inverter Starter Type, Hermetic Compressor - 3,0 KW
ANB33FJSMT
