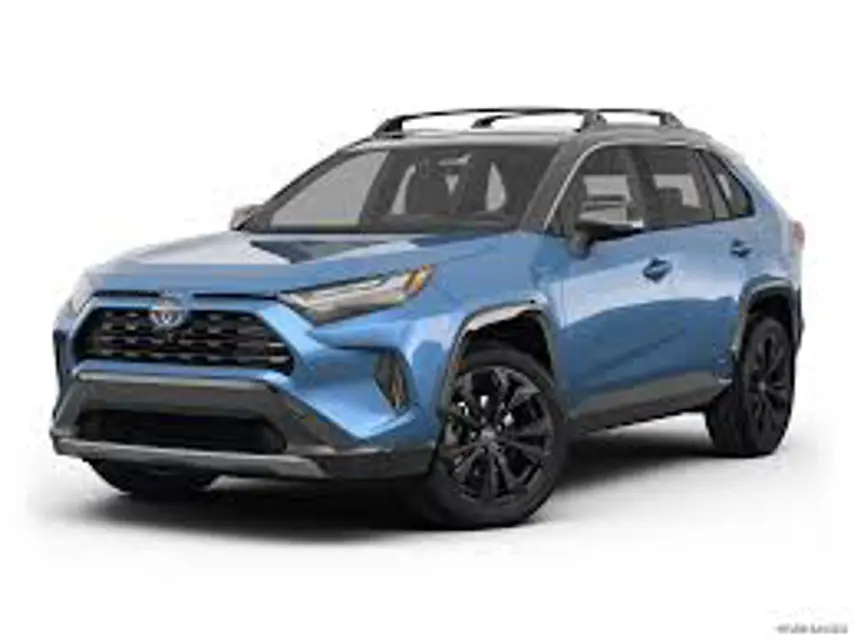

Toyota Vehicle RAV4

Create an account to install this asset package.

Maintenance Plans for Toyota Vehicle Model RAV4

Integrate maintenance plans directly into your work orders in MaintainX.

Air Conditioning Filter Replacement

Warning: Always turn the power switch to OFF before starting the procedure.

Power switch turned to OFF?

Glove box opened and damper slid off?

Sides of the glove box pushed in to disconnect the claws?

Glove box fully opened and supported?

Bottom of the glove box detached?

Warning: Do not use excessive force if the glove box does not detach when lightly pulled.

Filter cover unlocked and removed?

Filter case removed?

Run this procedure

Coolant Check

Warning: Do not remove the engine/power control unit coolant reservoir caps when the hybrid system is hot.

Coolant level in the reservoir

Is the coolant level between the “FULL” and “LOW” lines?

Coolant selection

U.S.A.: “Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deionized water. (Minimum temperature: -31°F [-35°C])

Canada: “Toyota Super Long Life Coolant” is a mixture of 55% coolant and 45% deionized water. (Minimum temperature: -44°F [-42°C])

Did the coolant level drop within a short time of replenishing?

Visually check the following for leaks

If you cannot find a leak, describe the issue

Run this procedure

Light Bulbs Replacement

You may replace the following bulbs by yourself. The difficulty level of replacement varies depending on the bulb. If necessary bulb replacement seems difficult to perform, contact your Toyota dealer.

For more information about replacing other light bulbs, contact your Toyota dealer.

Preparing for light bulb replacement

Check the wattage of the light bulb to be replaced.

■ Lights that need to be replaced by your Toyota dealer

 Headlights

 Front turn signal lights (LED type)

 Daytime running lights

 Parking lights (LED type)

Run this procedure

Radiator And Condenser Check

Warning: Do not touch the radiator or condenser when they are hot. Serious injuries, such as burns, may occur.

Warning: Do not touch the engine compartment when the electric cooling fan is operating. Be sure the power switch is OFF when working near the electric cooling fan or radiator grille.

Radiator clear of any foreign objects

Condenser clear of any foreign objects

Is either the radiator or condenser extremely dirty?

If either of the above parts is extremely dirty or you are not sure of their condition, have your vehicle inspected by your Toyota dealer.

Sign off on the radiator and condenser check

Run this procedure

Vehicle Exterior Cleaning

Warning: This cleaning procedure requires trained personnel with PPE!

Working from top to bottom, liberally apply water to the vehicle body, wheel wells and underside of the vehicle to remove any dirt and dust.

Wash the vehicle body using a sponge or soft cloth, such as a chamois.

For hard-to-remove marks, use car wash soap and rinse thoroughly with water.

Wipe away any water.
