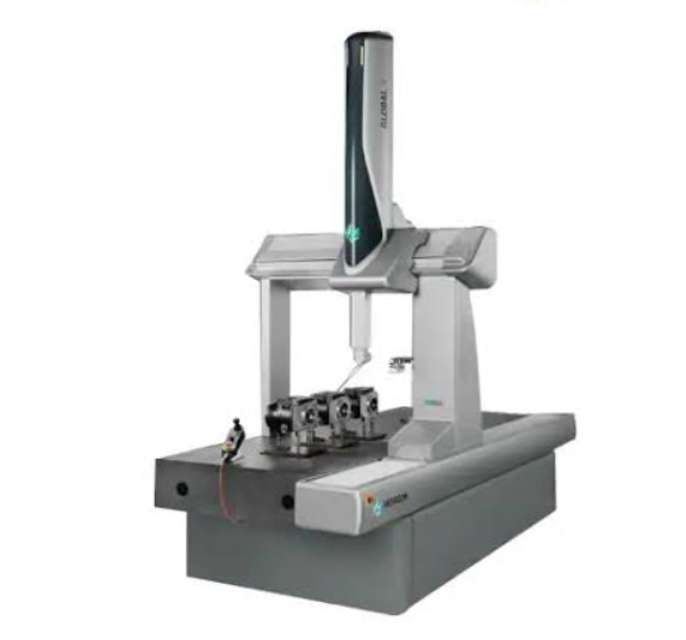

Hexagon Manufacturing Intelligence Coordinate Measuring Machine GLOBAL S CHROME 15.30.10

Safety and Emergency Systems Check

Verify functionality of safety systems

Visual Inspection and Hardware Check

Perform visual inspection for missing or damaged parts and abnormal vibrations

Tighten any loose screws and nuts

Replace any missing screws or nuts

Inspect Jogbox cable for damage

Is the Jogbox cable in good condition?

Emergency Button Functionality Check

Verify the functionality of emergency buttons

Are all emergency buttons functioning properly?

Peripheral Protective Devices Check

Verify the functionality of peripheral protective devices

Are all peripheral protective devices functioning properly?

Laser Scanner Functionality Check

Check laser scanner functionality as per user manual

Verify the extension of protected areas as per page 16 of the manual

Remove the screws securing the fixed guards

Are there side skirts to remove?

Pay attention to connection wiring when removing laser scanners

Reassemble the guards using all screws and washers

Remove the transparent polycarbonate cup

Was the filter cleaned with a compressed air jet?

Was the filter washed with neutral detergent?

Wash the cup with neutral detergent

Reassembly and Pressure Regulation

Insert the filter in its compartment and reassemble the cup

Check presence of anti-tilt feet

Measure distance from top ends of anti-tilt feet to bottom surface of granite

Anti-Vibration Support Inspection

Check position of anti-vibration supports

Were any faults found in the anti-tilt feet or anti-vibration supports?

Stop the measuring system if faults are found
