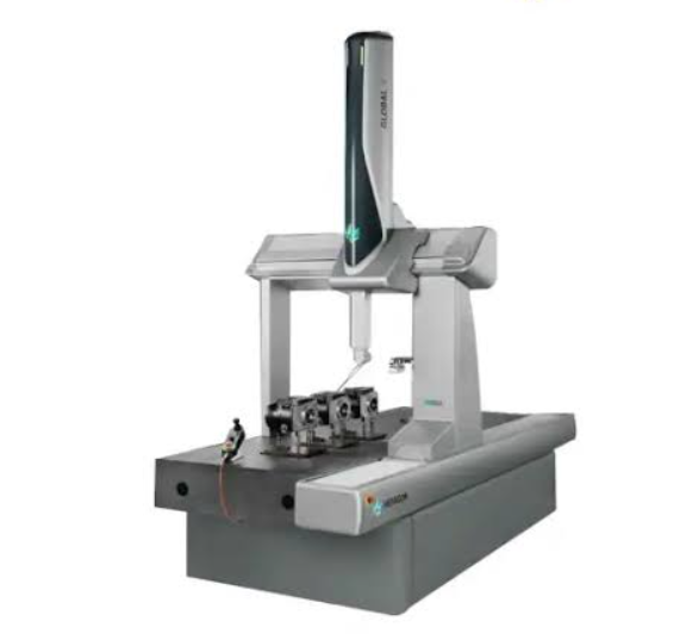

Hexagon Manufacturing Intelligence Coordinate Measuring Machine GLOBAL S CHROME 05.05.05

Remove the transparent polycarbonate cup

Wash the cup with neutral detergent

Insert the new filter and reassemble the cup

Is the working pressure within the normal range?

Check for missing or damaged parts and abnormal vibrations

Inspect guards and covers for damage or missing parts

Repair damaged guards and covers

Replace missing guards and covers

Pneumatic Control Unit Inspection

Check the pressure in the air supply system on the pressure gauge

Is the pressure within the normal range?

Use a soft, clean, lint-free cloth moistened with heptane to clean the guideway.

Move the moving parts of the machine to clean the entire length of the guideway.

Check for signs of abrasion or scraping on the guideway.

If signs of abrasion or scraping are found, contact Hexagon customer service.

Use a soft, clean, lint-free cloth moistened with isopropyl alcohol or heptane to clean the optical scales.

Move the moving parts of the machine to clean the entire length of the optical scale.

Let the optical scales dry before using the measuring machine.

Ensure no operations are performed on the sliding system components other than specified.

Report any counting errors found after maintenance or during machine use.

Emergency Button Functionality Check

Verify the functionality of emergency buttons

Are all emergency buttons functioning properly?

Peripheral Protective Devices Check

Verify the functionality of peripheral protective devices

Are all peripheral protective devices functioning properly?

Is the laser scanner working as per the user instruction manual?

Is the extension of the protected areas correct?
