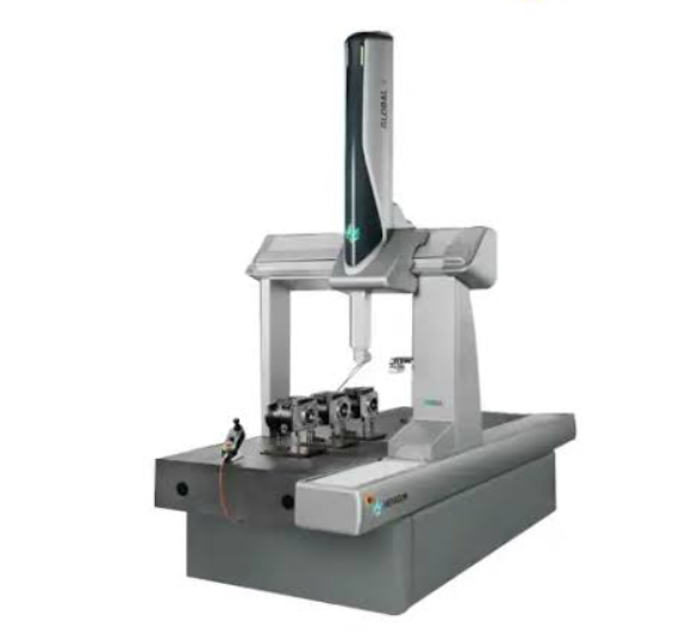

Hexagon Manufacturing Intelligence Coordinate Measuring Machine GLOBAL S CHROME 09.12.08

Check for missing or damaged parts and abnormal vibrations

Inspect guards and covers for damage or missing parts

Repair any damaged guards or covers

Replace any missing guards or covers

Pneumatic Control Unit Inspection

Check the pressure in the air supply system on the pressure gauge

Inspect devices for automatically cleaning the filters

Use a soft, clean, lint-free cloth moistened with isopropyl alcohol or heptane to clean the optical scales.

Move the moving parts of the machine to clean the entire length of the optical scale.

Let the optical scales dry before using the measuring machine.

Ensure no operations are performed on the sliding system components other than specified.

Report any counting errors found after maintenance or during use.

Emergency Button Functionality Check

Verify the functionality of emergency buttons

Are all emergency buttons functioning properly?

Peripheral Protective Devices Check

Verify the functionality of peripheral protective devices

Are all peripheral protective devices functioning properly?

Laser Scanner Functionality Check

Check laser scanner functionality as per user manual

Verify the extension of protected areas as per page 16 of the manual

Check presence of anti-tilt feet

Measure distance from top ends of anti-tilt feet to bottom surface of granite

Anti-Vibration Support Inspection

Verify position of anti-vibration supports

Were any faults found in the anti-tilt feet or anti-vibration supports?

Stop the measuring system if faults are found

Counterbalancing Cylinder Maintenance

Inspect the steel wire of the counterbalancing cylinder for wear

Is there evident wear on the steel wire?

Grease the steel wire of the counterbalancing cylinder

Axis Reduction and Driving Belts Check

Check the axis reduction and driving belts for wear

Is there evident wear on the axis reduction and driving belts?

Call Hexagon customer service if wear is evident on any component
