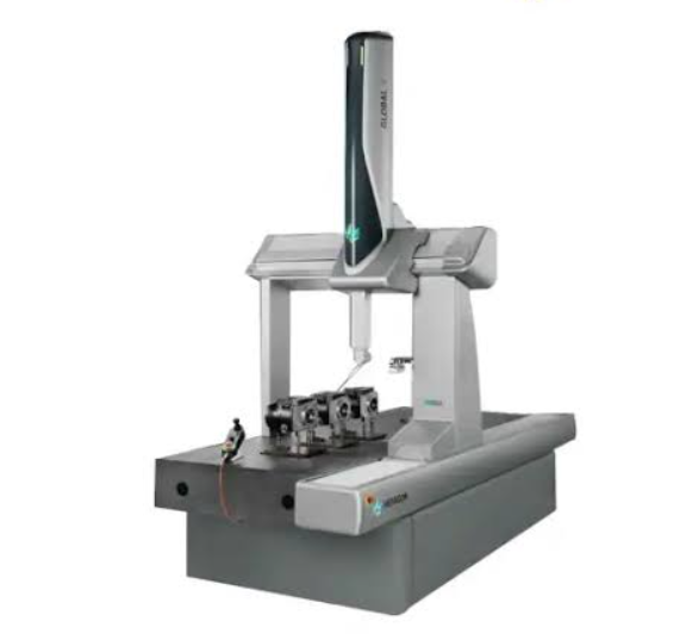

Hexagon Manufacturing Intelligence Coordinate Measuring Machine GLOBAL S CHROME 12.30.10

Check for missing or damaged parts and abnormal vibrations

Inspect guards and covers for damage or missing parts

Repair any damaged guards or covers

Replace any missing guards or covers

Pneumatic Control Unit Inspection

Check the pressure in the air supply system on the pressure gauge

Inspect devices for automatically cleaning the filters

Use a soft, clean, lint-free cloth moistened with heptane to clean the guideway.

Move the moving parts of the machine to clean the entire length of the guideway.

Check for signs of abrasion or scraping on the guideway.

Describe any signs of abrasion or scraping found on the guideway.

Contact Hexagon customer service if signs of abrasion or scraping are found.

Safety and Emergency Systems Check

Verify functionality of safety systems

Visual Inspection and Hardware Check

Perform visual inspection for missing or damaged parts and abnormal vibrations

Tighten any loose screws and nuts

Replace any missing screws or nuts

Inspect Jogbox cable for damage

Is the Jogbox cable in good condition?

Counterbalancing Cylinder Maintenance

Inspect the steel wire of the counterbalancing cylinder for wear

Grease the steel wire of the counterbalancing cylinder

Axis Reduction and Driving Belts Check

Check the axis reduction and driving belts for wear

Ensure no attempt is made to service drive system components

Check presence of anti-tilt feet

Measure distance from top ends of anti-tilt feet to bottom surface of granite (in millimetres)

Is the distance within 2-3 millimetres?

Anti-Vibration Support Inspection

Check position of anti-vibration supports

Were any faults found in the anti-tilt feet or anti-vibration supports?
