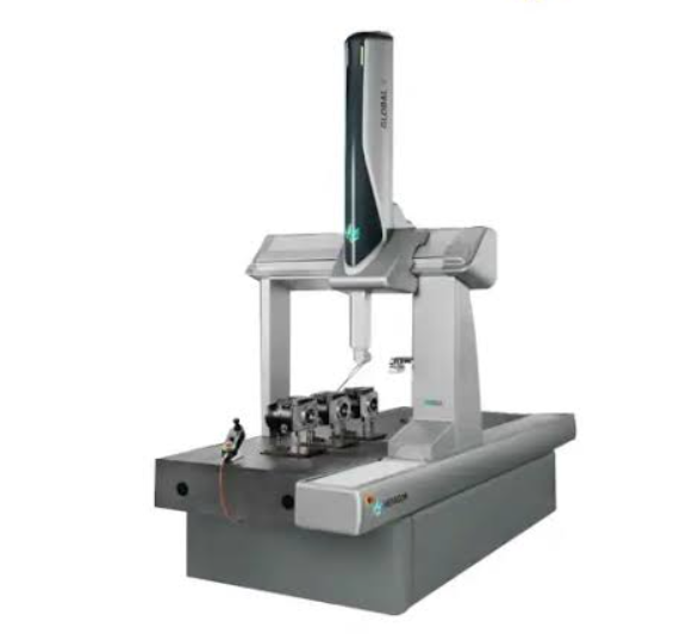

Hexagon Manufacturing Intelligence Coordinate Measuring Machine GLOBAL S CHROME 12.15.10

Remove the transparent polycarbonate cup

Wash the cup with neutral detergent

Insert the new filter and reassemble the cup

Is the working pressure within the normal range?

Remove the screws securing the fixed guards

Are side skirts present on the machine?

Disconnect the wiring of the laser scanners if present

Reassemble the guards using all screws and washers

Remove the transparent polycarbonate cup

Use a compressed air jet to remove solid residue from the filter

Was the air jet sufficient to clean the filter completely?

If necessary, wash the filter with neutral detergent and use the air jet again

Check that all emergency stop buttons are working correctly

Inspect buttons and switches for damage and functionality

Check the condition of the air hoses for air leaks

Inspect cables for signs of abrasion or wear

Pneumatic Control Unit Maintenance

Check the state of the secondary filter

Check the anti-tilt feet and the anti-vibration supports

Check for missing or damaged parts and abnormal vibrations

Inspect guards and covers for damage or missing parts

Repair damaged guards and covers

Replace missing guards and covers

Pneumatic Control Unit Inspection

Check the pressure in the air supply system on the pressure gauge

Inspect devices for automatically cleaning the filters
