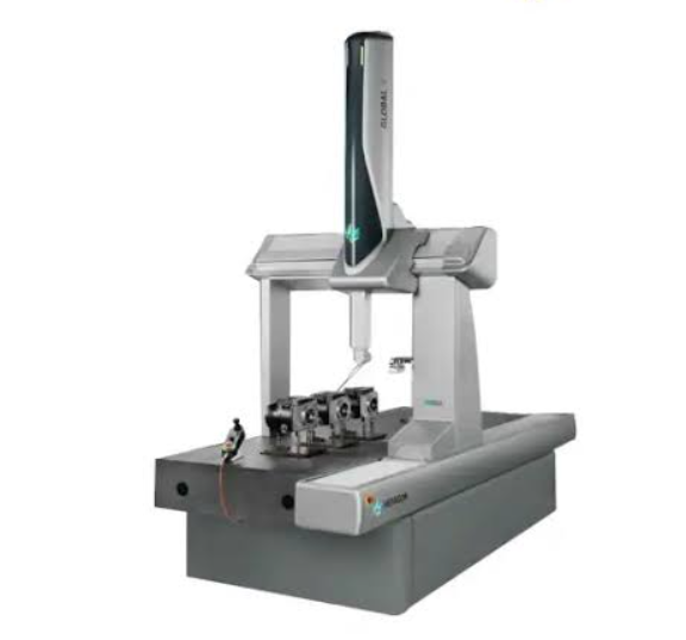

Hexagon Manufacturing Intelligence Coordinate Measuring Machine GLOBAL S CHROME 12.22.10

Check presence of anti-tilt feet

Measure distance from top ends of anti-tilt feet to bottom surface of granite (in millimetres)

Is the distance between 2-3 millimetres?

Anti-Vibration Support Inspection

Check position of anti-vibration supports

Were any faults found in the adjustable feet or anti-vibration supports?

Check that all emergency stop buttons are working correctly

Inspect buttons and switches for damage and functionality

Check the condition of the air hoses for air leaks

Inspect cables for signs of abrasion or wear

Replace electric wires if damaged

Pneumatic Control Unit Maintenance

Replace the primary filter if necessary

Check the state of the secondary filter

Counterbalancing Cylinder Maintenance

Inspect the steel wire of the counterbalancing cylinder for wear

Is there evident wear on the steel wire?

Grease the steel wire of the counterbalancing cylinder

Axis Reduction and Driving Belts Check

Check the axis reduction and driving belts for wear

Is there evident wear on the axis reduction and driving belts?

Call Hexagon customer service if there is evident wear on any component

Check for missing or damaged parts and abnormal vibrations

Inspect guards and covers for damage or missing parts

Repair damaged guards and covers

Replace missing guards and covers

Pneumatic Control Unit Inspection

Check the pressure in the air supply system on the pressure gauge

Inspect devices for automatically cleaning the filters

Safety and Emergency Systems Check

Verify functionality of safety systems

Visual Inspection and Hardware Check

Perform visual inspection for missing or damaged parts

Tighten any loose screws and nuts

Replace any missing screws or nuts

Inspect Jogbox cable for damage
