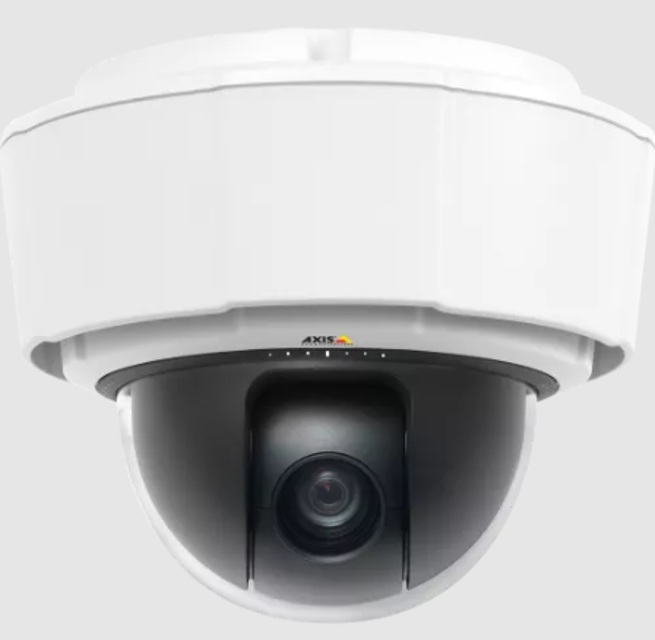

AXIS PTZ Network Camera P5635-E Mk II

Set the regulator gauge on the gas cylinder to 0.5 bar (7 psi)

Remove the caps from the inlet valve and the pressure relief valve

Repeat the filling process a total of 3 times

Place the chuck on the inlet valve and press down to fill the camera with nitrogen

Verify that the gas is flowing out by placing your hand over the pressure relief valve

Lift the pressure relief valve to let the overpressure out of the camera unit

Use a non-abrasive, solvent-free neutral soap or detergent with water and a soft cloth

Rinse well with clean lukewarm water

Dry with a soft cloth to prevent water spotting

Refer to the device’s user manual for detailed instructions

Navigate to Settings > System > Maintenance > PTZ status

Click on Test to initiate PTZ status check

Were any errors reported during the PTZ test?

If errors were reported, navigate to Settings > System > Maintenance > Reports

Click on Download the server report

Contact axis.com/support and describe the issue

Turn off the device and unplug it from the power source

Gather necessary cleaning tools and materials

Clean the outer heat sink according to the instructions in the device’s installation guide

Inspect the heat sink for any visible damage

Ensure all cleaning materials are removed from the area

Perform tasks on the camera’s webpage (live view)

Use the device with the following browsers

Go to Settings > System > Maintenance > Reports and click View the server report

Search for PTZCounter in the server report

Is the PTZ counter above the (x) value?

If PTZ counter is above (x) value
