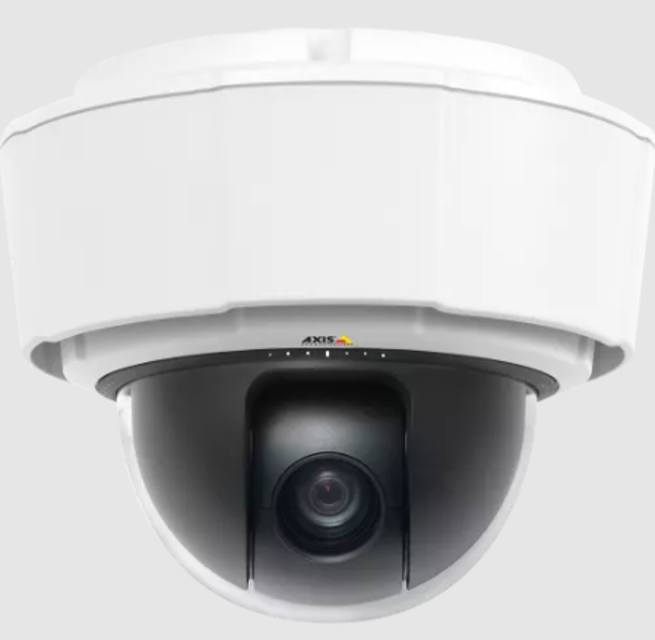

AXIS PTZ Network Camera P5532/-E

Inspect the dome cover for scratches

Inspect the dome cover for cracks

Is there a need to replace the dome cover due to severe scratches or cracks?

Refer to the device’s installation guide for dome cover replacement instructions

Order a replacement dome cover from an Axis reseller if necessary

Bracket Inspection and Cleaning

Inspect the bracket for insects and dirt

Remove any insects and dirt from the bracket

Is the camera installed on an Axis bracket?

Install AXIS T91A6 Pipe Seal inside the bracket if applicable

Turn off the device and unplug it from the power source

Gather necessary cleaning tools and materials

Clean the outer heat sink according to the instructions in the device’s installation guide

Is the heat sink free of dust and debris?

Reassemble any parts that were removed during cleaning

Set the regulator gauge on the gas cylinder to 0.5 bar (7 psi)

Remove the caps from the inlet valve and the pressure relief valve

Enter the number of times the filling process is repeated

Place the chuck on the inlet valve and press down to fill the camera with nitrogen

Verify that the gas is flowing out by placing your hand over the pressure relief valve

Lift the pressure relief valve to let the overpressure out of the camera unit

Navigate to Settings > System > Maintenance > PTZ status

Click on Test to initiate PTZ mechanism test

Were any errors reported during the PTZ test?

Navigate to Settings > System > Maintenance > Reports

Click on Download the server report
