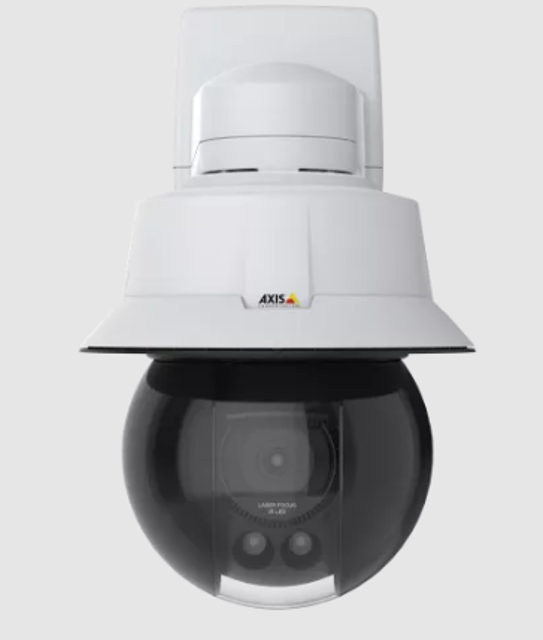

AXIS PTZ Network Camera Q6215-LE

Use a non-abrasive, solvent-free neutral soap or detergent with water and a soft cloth

Rinse well with clean lukewarm water

Dry with a soft cloth to prevent water spotting

Refer to the device’s user manual for detailed instructions

Turn off the device and unplug it from the power source

Gather cleaning materials (soft brush, compressed air, and lint-free cloth)

Clean the outer heat sink using a soft brush to remove loose dust and debris

Use compressed air to blow out any remaining dust from the heat sink fins

Wipe the outer surface of the heat sink with a lint-free cloth

Is the heat sink free of dust and debris?

Ensure the gas cylinder is filled with Nitrogen

Set the regulator gauge on the gas cylinder to 0.5 bar (7 psi)

Remove the caps from the inlet valve and the pressure relief valve

Place the chuck on the inlet valve and press down to fill the camera with nitrogen

Is the pressure relief valve open, indicating gas flow out?

Lift the pressure relief valve to let the overpressure out of the camera unit

Navigate to Settings > System > Maintenance > PTZ status

Click on Test to initiate PTZ mechanism test

Were any errors reported during the PTZ test?

If errors were reported, navigate to Settings > System > Maintenance > Reports

Click on Download the server report

Describe the errors reported, if any

Contact axis.com/support for further assistance

Specify the screws that are loose

Tighten the loose screws according to the torque values in the device’s installation guide
