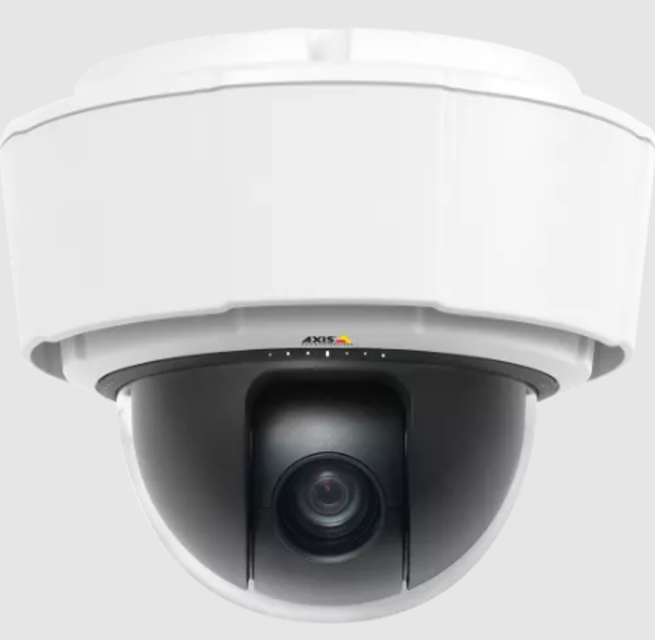

AXIS PTZ Network Camera P5522/-E

Navigate to Settings > System > Maintenance > PTZ status

Click on Test to initiate PTZ mechanism test

Were any errors reported during the PTZ test?

Navigate to Settings > System > Maintenance > Reports

Click on Download the server report

Use a non-abrasive, solvent-free neutral soap or detergent with water and a soft cloth

Rinse well with clean lukewarm water

Dry with a soft cloth to prevent water spotting

Refer to the device’s user manual for detailed instructions

Specify the location and type of loose screws

Tighten the loose screws according to the torque values in the device’s installation guide

Turn off the device and unplug it from the power source

Gather necessary cleaning tools and materials

Clean the outer heat sink according to the instructions in the device’s installation guide

Inspect the heat sink for any visible damage

Ensure all components are reassembled correctly

Set the regulator gauge on the gas cylinder to 0.5 bar (7 psi)

Remove the caps from the inlet valve and the pressure relief valve

Place the chuck on the inlet valve and press down to fill the camera with nitrogen

Verify that the gas is flowing out by placing your hand over the pressure relief valve

Lift the pressure relief valve to let the overpressure out of the camera unit

Repeat the filling process a total of 3 times, leaving the camera pressurized the last time
