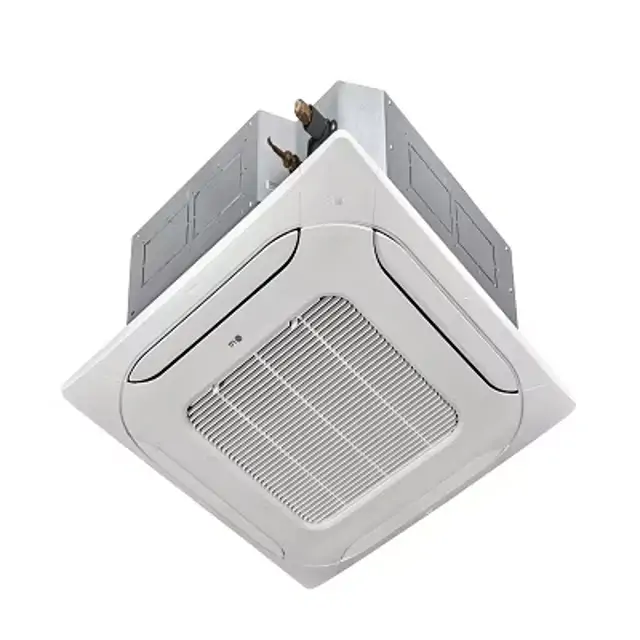

LG VRF Indoor Unit ARNU24GTPC4
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for LG VRF Indoor Unit ARNU24GTPC4
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
LG VRF Indoor Unit ARNU24GTPC4
Create an account to install this asset package.
Maintenance Plans for LG VRF Indoor Unit Model ARNU24GTPC4
Integrate maintenance plans directly into your work orders in MaintainX.
Long-Term Restart Preparation
Maintenance and Service — When the air conditioner is to be used again
Operate the air conditioner in Fan operation mode for 2 to 3 hours
Clean the air filter and install it in the indoor unit
Check that the air inlet and outlet of the units are not blocked
Is the ground wire connected correctly?
2 Weekly Air Filter Cleaning
Maintenance and Service — Air Filters
Turn off the main power to the system
Ensure none of the following are used
Remove the Air filters by pulling the tab slightly forward
Avoid touching the metal parts of the indoor unit when removing the air filter
Clean dirt from the air filter using one of the following methods
Is dirt conspicuous?
Wash with a neutral detergent in lukewarm water if dirt is conspicuous
Ensure water used is not 50 °C or more to avoid deformation
Long-Term Shutdown Preparation
Maintenance and Service — When the air conditioner is not going to be used for a long time
Turn off the breaker
Check for dirt accumulation
Routine Grille Case and Remote Control Cleaning
Maintenance and Service — Grille, Case, and Remote Control
Turn the system off before cleaning
Disconnect supply power before cleaning the indoor unit
Wipe with a soft, dry cloth
Avoid using bleach or abrasives
