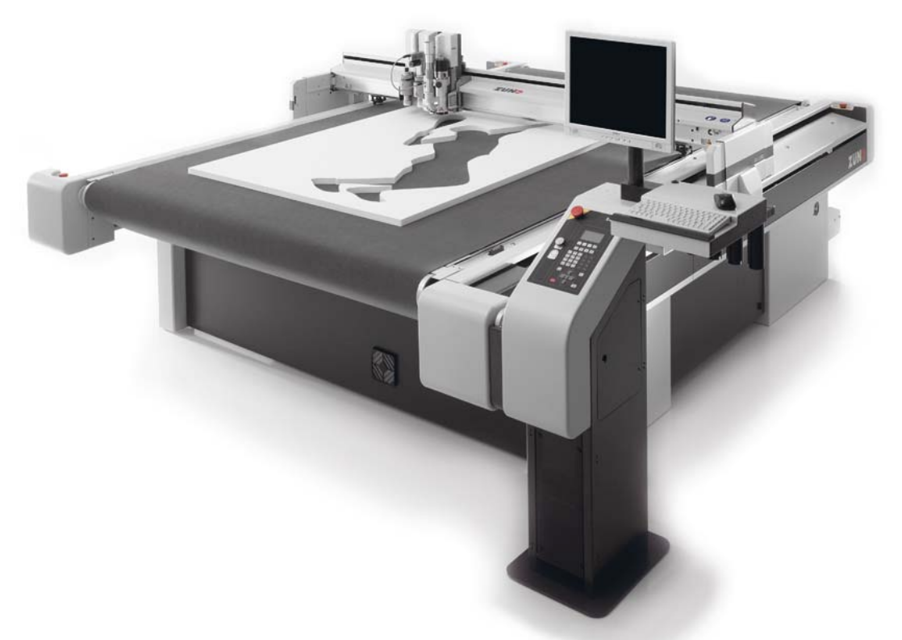

Zünd Systemtechnik Digital Flatbed Cutter 3XL-3200

General: This procedure describes all the maintenance jobs required for the machine. The maintenance list only affects the basic unit. Maintenance activities for modules, tool inserts and options can be found in the respective operating manual.

Important: In general, no special tools are required for maintenance jobs that operators can carry out themselves. All other jobs must be undertaken only by personnel authorised by Zünd or by Zünd Systemtechnik Customer Services or by contractual partners authorised by Zünd Systemtechnik.

Important: Do not exceed the specified maintenance and cleaning intervals. You can shorten these intervals if necessary at your own discretion.

Disposal: The condensation liquid from the water separator is contaminated with oil. Therefore the liquid must be disposed of correctly according to the specific national regulations.

Set the main switch of the maintenance unit to Off

Hold a container under the drain

Allow the liquid to drip into the container and shut the drain screw

Sign off on the machine maintenance

Warning: This maintenance check requires trained personnel with PPE!

Maintenance jobs that operators can carry out themselves are specially indicated

All other jobs must be undertaken only by personnel authorised by Zünd or by Zünd Systemtechnik Customer Services or by contractual partners authorised by Zünd Systemtechnik

Do not exceed the specified maintenance and cleaning intervals. You can shorten these intervals if necessary at your own discretion

Undo the tensioning screws on both sides

Cut the conveyor belt using scissors and remove it

Dispose of the conveyor belt correctly

Lift the covers (1 x front, 1 x rear) and remove from the guide

Unroll the conveyor belt as shown in Fig. 7-19. A stamp is located on the front upper side. The points in the feed direction

– This chapter describes (in tabular form) all the maintenance jobs which are required for the machine

– The maintenance list only affects the basic unit. Maintenance activities for modules, tool inserts and options can be found in the respective operating manual

– Maintenance jobs that operators can carry out themselves are specially indicated and are described in more detail in this chapter. Important!

In general, no special tools are required for maintenance jobs that operators can carry out themselves

• All other jobs must be undertaken only by personnel authorised by Zünd or by Zünd Systemtechnik Customer Services or by contractual partners authorised by Zünd Systemtechnik

Do not exceed the specified maintenance and cleaning intervals. You can shorten these intervals if necessary at your own discretion

General: This chapter describes all the maintenance jobs required for the machine. The maintenance list only affects the basic unit. Maintenance activities for modules, tool inserts and options can be found in the respective operating manual.

Important: In general, no special tools are required for maintenance jobs that operators can carry out themselves. All other jobs must be undertaken only by personnel authorised by Zünd or by Zünd Systemtechnik Customer Services or by contractual partners authorised by Zünd Systemtechnik.

Important: Do not exceed the specified maintenance and cleaning intervals. You can shorten these intervals if necessary at your own discretion.

Visually check the machine for damage

Free the machine of dust and processing residue

Check electrical equipment (options) to ensure they function

Check correct functioning of the emergency stop switch

Check all safety devices (correct functioning of light barriers, protective trip switch)

Use a vacuum clean to extract chips and dust from the brushes

This procedure describes all the maintenance jobs required for the machine. Maintenance jobs that operators can carry out themselves are specially indicated. All other jobs must be undertaken only by authorised personnel. Do not exceed the specified maintenance and cleaning intervals.

Clean rubber cushions/needle cushions of the feed elements

If necessary, did you top up oil according to specifications?

Sign off on the weekly digital flatbed cutter maintenance
