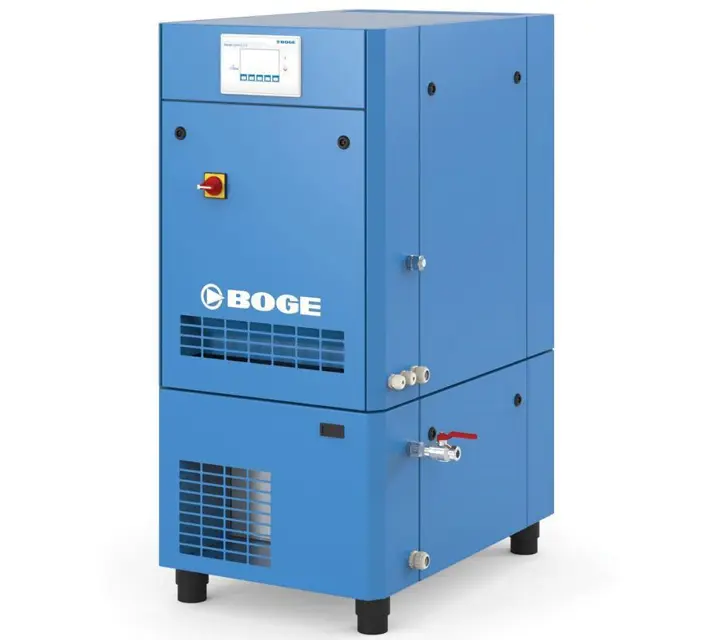

Otto Boge Scroll Compressor EO 11D

Create an account to install this asset package.

Maintenance Plans for Otto Boge Scroll Compressor Model EO 11D

Integrate maintenance plans directly into your work orders in MaintainX.

500 Hourly/1 Monthly Supply Air Filter Cabinet Maintenance

Check the function of the supply air filter mats in the switch cabinet.

Once per month, however at least every 500 operating hours.

Reduce interval if air is heavily polluted.

Replace the supply air filter mats:

When dirt becomes encrusted on the mats, or at least once a year.

Note: Always keep a sufficient stock filter mats as replacements.

Replacing the supply air filter mat on the switch cabinet:

Switch off the compressor using the OFF button.

DANGER: Danger of death due to electric current! Coming into contact with live parts, defective insulation or components can be fatal. Open the mains disconnecting device and secure against accidental switching on again using a padlock.

Run this procedure

10000 Hourly/4 Yearly V-Belt Maintenance

Warning: Risk of injury due to sharp edges, hot surfaces, overpressure and exposure to dust! This maintenance work should only be carried out by authorised and qualified personnel. Wear PPE.

Switch off the compressor using the OFF button.

Open the mains disconnecting device and secure it to prevent it being switched on again.

Allow all hot compressor components to cool to 50°C.

Depressurise the system.

Remove the service side cladding.

Remove the belt protection.

Loosen all four motor fastening screws (2).

Turn the belt tensioning screw (1) anti-clockwise.

Run this procedure

3000 Hourly/1 Yearly Compressor Safety Valve Check

WARNING

Risk of injury from flying parts caused by overpressure, e.g., burst components bursting or detonating!

Risk of injury due to sudden discharge of hot compressed air!

It is forbidden to operate the compressor without the installed safety devices.

A safety valve prevents inadmissible overpressure.

The specified final compression pressure must not be exceeded.

Observe the statutory regulations applicable in the installation location for operating safety devices against overpressure.

Have the function of the safety valve checked exclusively by BOGE Service personnel.

Interval: After approx. 3000 operating hours but at least once a year.

Run this procedure

10000 Hourly/4 Yearly Cooling Air Fan Maintenance

WARNING: Risk of injury due to sharp edges, hot surfaces, overpressure and exposure to dust! This maintenance work should only be carried out by authorised and qualified personnel. Wear PPE.

Switch off the compressor using the OFF button.

Open the mains disconnecting device and secure it to prevent it being switched on again.

Allow all hot compressor components to cool to 50°C.

Depressurise the system.

Remove the right side panel of the housing and the isolating protective equipment.

Remove the V-belts.

Loosen the screws on the scroll compressor fan covers and remove the covers.

Check the fans and clean if necessary.

Run this procedure

20000 Hourly/8 Yearly Scroll Compressor Maintenance

Warning: Scroll compressor replacement should be done exclusively by BOGE Service personnel.

Enter the operating hours of the compressor
