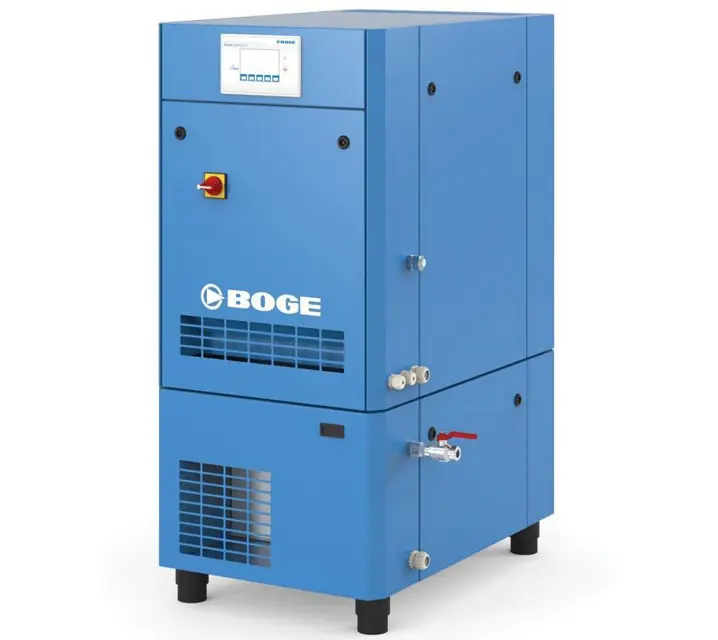

Otto Boge Scroll Compressor EO 16

Warning: This maintenance check requires trained personnel with PPE!

Is the condensate drain operational?

If the condensate drain is not operational, report the issues to the maintenance team and stop the procedure

Did you replace the set of wearing parts?

Upload a photo of the replaced parts

Sign off on the condensate drain maintenance

WARNING: Risk of injury due to sharp edges and exposure to dust! This maintenance work should only be carried out by authorised and qualified personnel. Wear PPE.

Prior to the maintenance work: Open the mains disconnecting device and secure against accidental switching on again using a padlock.

Switch off the compressor using the OFF button.

Open the compressor housing at the front.

Remove the filter housing lid (1).

Take out the filter cartridge (2).

ATTENTION: Danger of property damage! Do not clean the filter cartridge in liquids. Do not use hard objects for cleaning as doing so will damage the filter paper. Replace the filter cartridge if it is damaged or has been cleaned twice.

Tap the filter cartridge with your hand to knock out coarse dust.

Blow out fine dust using dry compressed air (max 5 bar) from the inside to outside.

Check the function of the supply air filter mats in the switch cabinet.

Once per month, however at least every 500 operating hours.

Reduce interval if air is heavily polluted.

Replace the supply air filter mats:

When dirt becomes encrusted on the mats, or at least once a year.

Note: Always keep a sufficient stock filter mats as replacements.

Replacing the supply air filter mat on the switch cabinet:

Switch off the compressor using the OFF button.

DANGER: Danger of death due to electric current! Coming into contact with live parts, defective insulation or components can be fatal. Open the mains disconnecting device and secure against accidental switching on again using a padlock.

Warning: Risk of injury due to sharp edges, hot surfaces, overpressure and exposure to dust! This maintenance work should only be carried out by authorised and qualified personnel. Wear PPE.

Switch off the compressor using the OFF button.

Open the mains disconnecting device and secure it to prevent it being switched on again.

Allow all hot compressor components to cool to 50°C.

Remove the right side panel of the housing and the isolating protective equipment.

Loosen the screws on the scroll compressor fan covers and remove the covers.

Change the suction filter cartridge:

– After it has been cleaned twice.

– Depending on soiling, also after 3,000 operating hours or annually.

1. Switch off the compressor using the OFF button.

WARNING: Risk of injury due to sharp edges, hot surfaces, overpressure and exposure to dust!

This maintenance work should only be carried out by authorised and qualified personnel.
